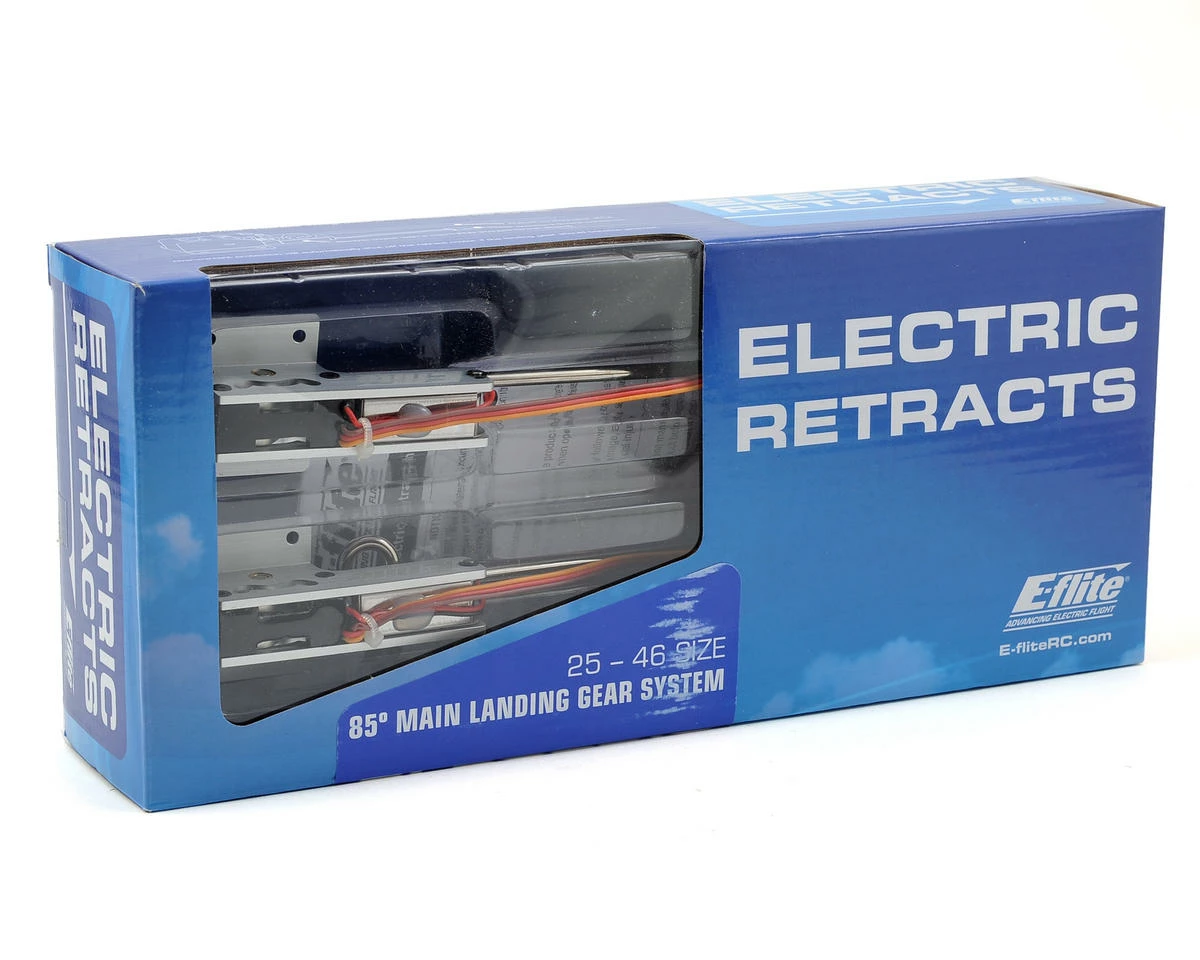

E-flite 25 – 46 Size 85° Main Electric Retract Set

This is the E-flite 25 – 46 Size 85° Main Electric Retract Set. You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system doesn’t require an air tank, complex linkages or even an extra servo. Simply bolt it into place and plug it into the receiver.

Specifications:

• Current Draw:
• Idle: 5mA
• Operating: 900mA (maximum)
• Pulse Width Trigger Points:
• Down: 1.331ms
• Up: 1.690ms
• Operation w/FM & DSM:
• FM: 22ms frame rate, 5V signal
• DSM: 20ms frame rate, 3.3V signal
• Sequence Time:
• @4.8V: 2.75sec
• @6.0V: 2.50sec
• @7.4V: 2.25sec
• Operating Voltage Range: 4.8—7.4V
• Aircraft Weight:
• 5.00–9.50 lb (2.25–4.30 kg)
• Unit Weight:
• Nose gear: 3.5 oz (99.5 g)
• Main gear: 2.8 oz (79.5 g) each
• Strut Diameter: 4mm

This product was added to our catalog on March 26, 2013
