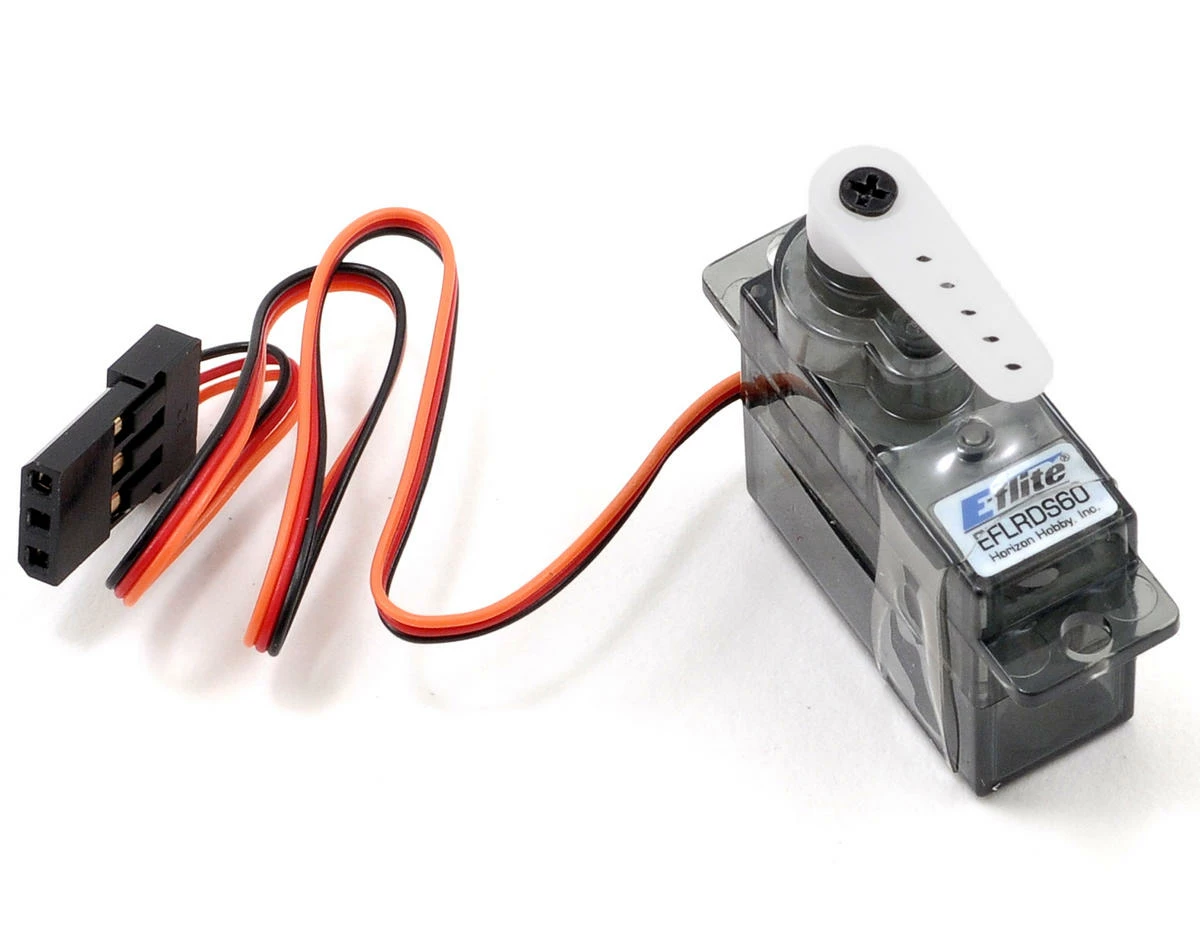

E-flite DS60 6.0-Gram Digital Super Sub-Micro Servo

This is the E-flite DS60 6.0-Gram Digital Super Sub-Micro Servo. This high speed, high torque, precise centering digital servo is perfect for electric indoor micro flyer, slow flyer and high-performance 3D models, small park flyers, micro electric helicopters, hand launch gliders.

Features:

• Digital amplifier for superior accuracy, response and holding torque
• High speed .09 sec @ 60° @ 4.8V for quick control response
• High torque, 13.1 oz/in (0.94 kg.cm) @ 4.8V
• Precise centering – less than 1°
• Lightweight, just 6.0 grams
• Universal connector compatible with major brand receivers
• Includes complete mounting hardware

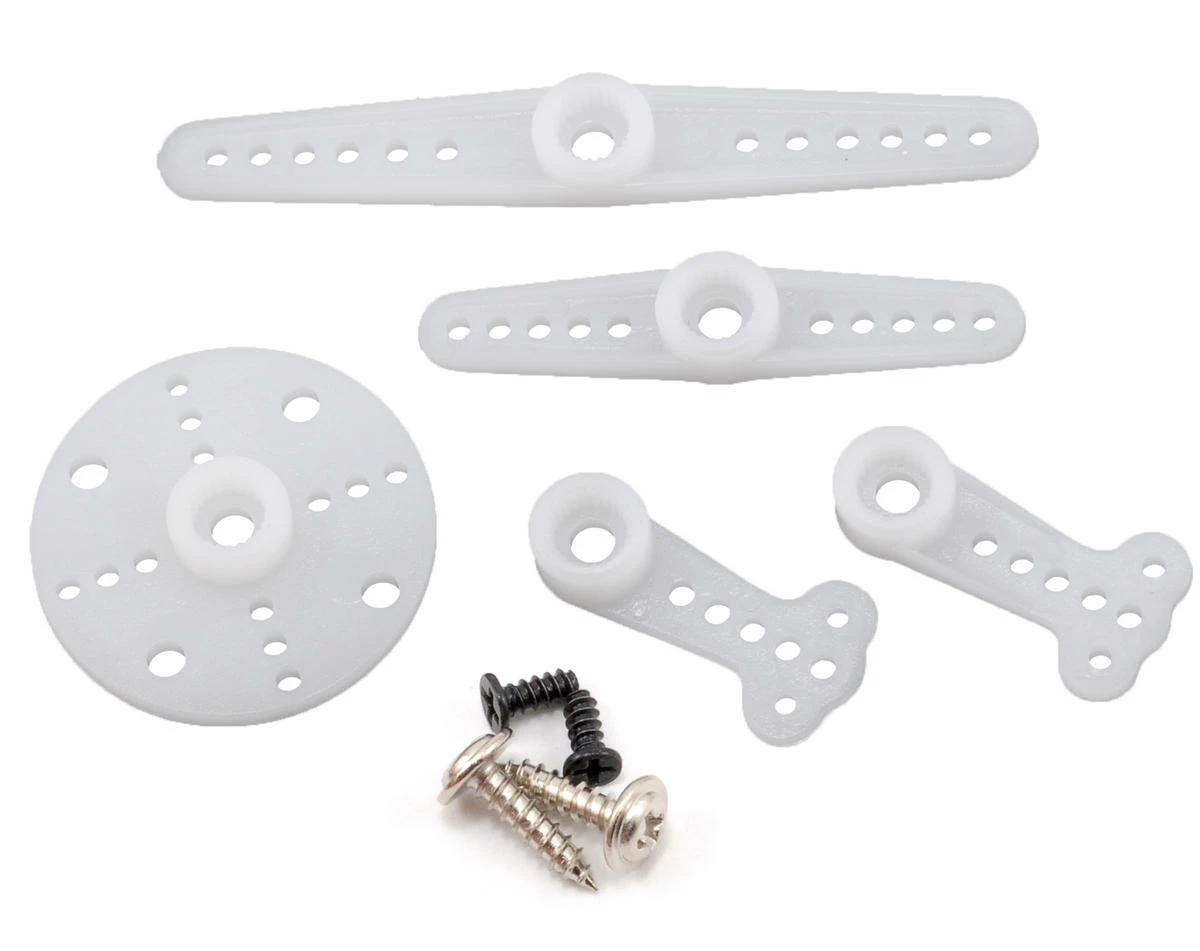

• Includes multiple servo arms including an extra-long 3D servo arm

Specifications:
Size Category: Minis and Micros
Type: Digital
Application: Sub-micro and Micro-sized airplanes and helis
Torque: 13.1 oz-in (0.94kg-cm) @4.8V; 16.1 oz-in (1.15kg-cm) @ 6.0V
Speed: 0.09 sec/60° @ 4.8V; 0.08 sec/60° @ 6.0V
Length: 0.92 in (23.5mm)
Width: 0.40 in (10.0mm)
Height: 0.96 in (24.0mm)
Weight: 0.21 oz (6.0g)
Motor Type: Coreless
Connector Type: Universal
Gear Type: Nylon
Current Draw Idle: 25mA @ 4.8V
Current Draw Stall: 560mA @ 4.8V
Voltage: 4.8V-6.0V DC
Deadband: <1μs
