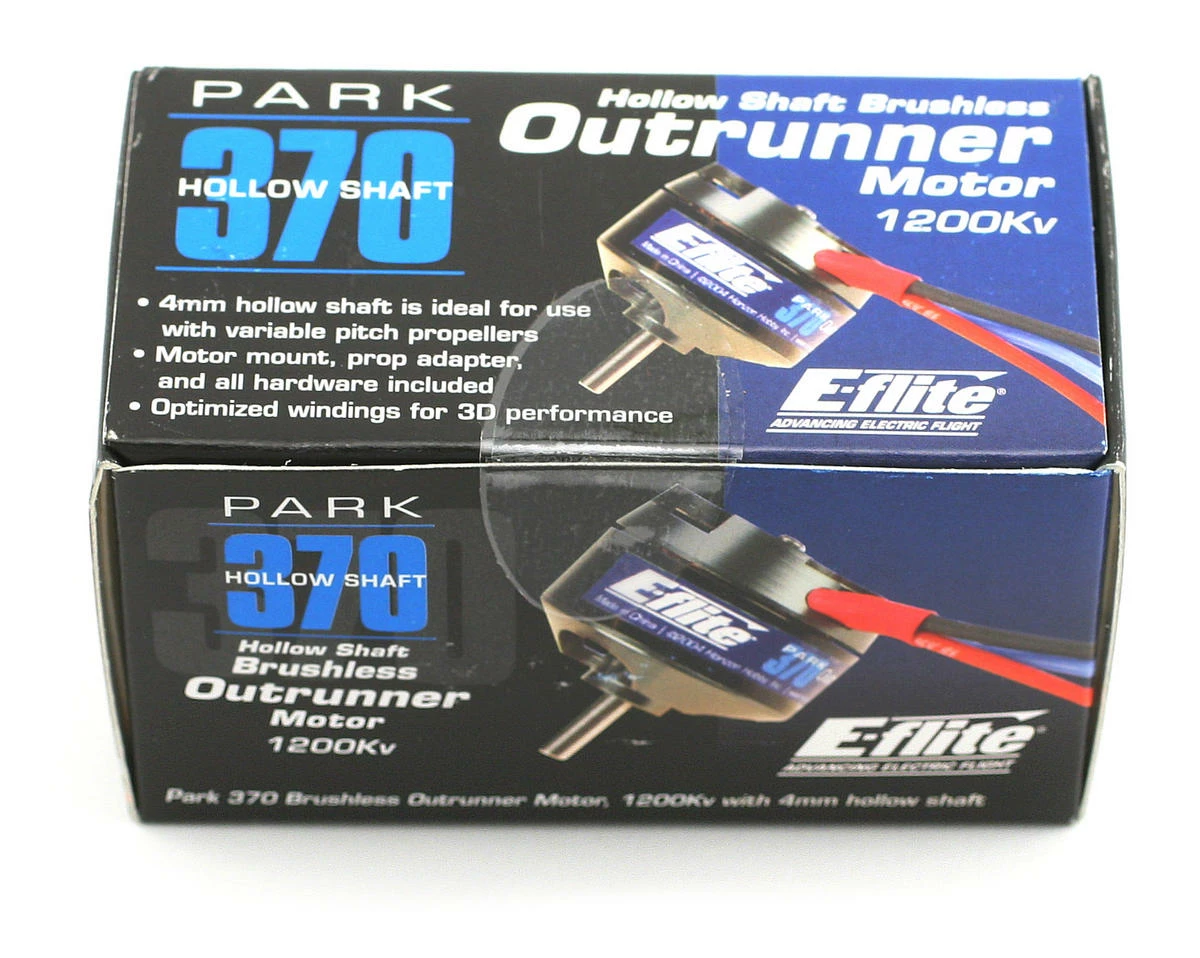

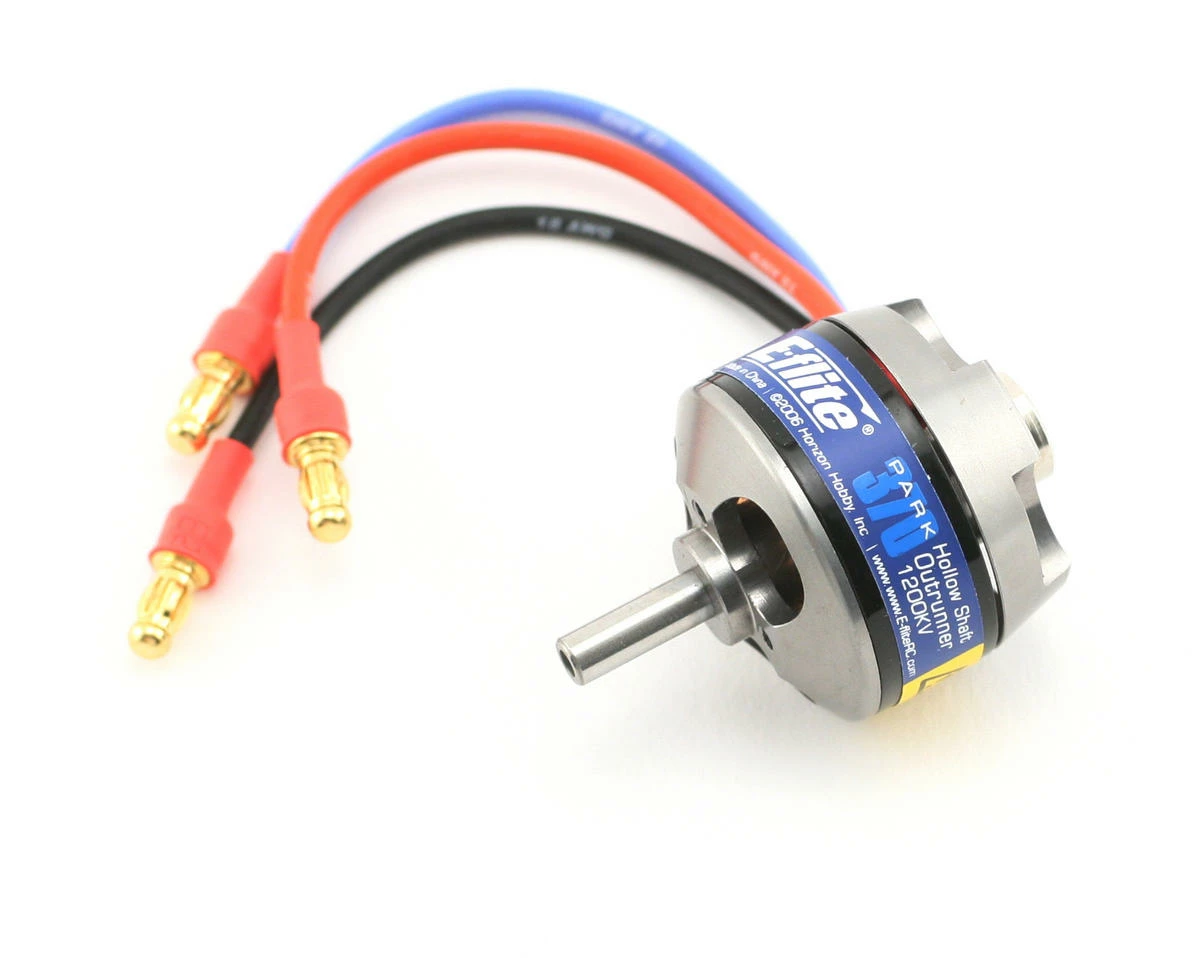

E-flite Park 370 BL Outrunner (1200kV) w/4mm Hollow Shaft

This is the E-flite Park 370 BL Outrunner, 1200kV with 4mm Hollow Shaft. E-flite’s latest Park 370 is a brushless outrunner motor that features a 4mm hollow shaft, ideal for use with variable pitch propellers. It’s perfectly designed for electric models equipped with variable-pitch propeller systems, such as the E-flite® ShowStopper VPP system. However, you don’t need a VPP to use this motor—it’s an excellent motor for small 3D airplanes that weigh 7–14 ounces. A motor mount, prop adapter and all hardware are included.

Features

• Ideal for models requiring up to 120 watts of power
• Optimized windings for 3D performance
• High-torque, direct-drive alternative to inrunner brushless motors
• Includes mount, prop adapters and mounting hardware
• 4mm hollow shaft is easily reversed for alternative motor installations
• Excellent motor for small 3D airplanes 7–14 oz (200–400 g)
• Extremely lightweight—just 1.6 ounces
• Ideal for variable pitch props such as the E-flite® Showstopper Variable Pitch Prop System
• External rotor design for better cooling
• High-quality construction with ball bearings

Specifications:
Type: Brushless Outrunner
Size: Park 370
Bearings or Bushings: Bearings
Recommended Prop Range: 8×3.8-10×4.7 or Variable Pitch Systems
Voltage: 7.2-12V
RPM/Volt (Kv): 1200
Resistance (Ri): .18 ohms
Idle Current (Io): .60A
Continuous Current: 10A
Maximum Burst Current: 12A (15 sec)
Cells: 6–10 Ni-MH/Ni-Cd or 2–3S Li-Po
Speed Control: 12-20A Brushless
Weight: 45 g (1.6 oz)
Overall Diameter: 28mm (1.10 in)
Shaft Diameter: 4mm (.16 in) hollow
Overall Length: 25mm (1.00 in)

This product was added to our catalog on January 27, 2021
