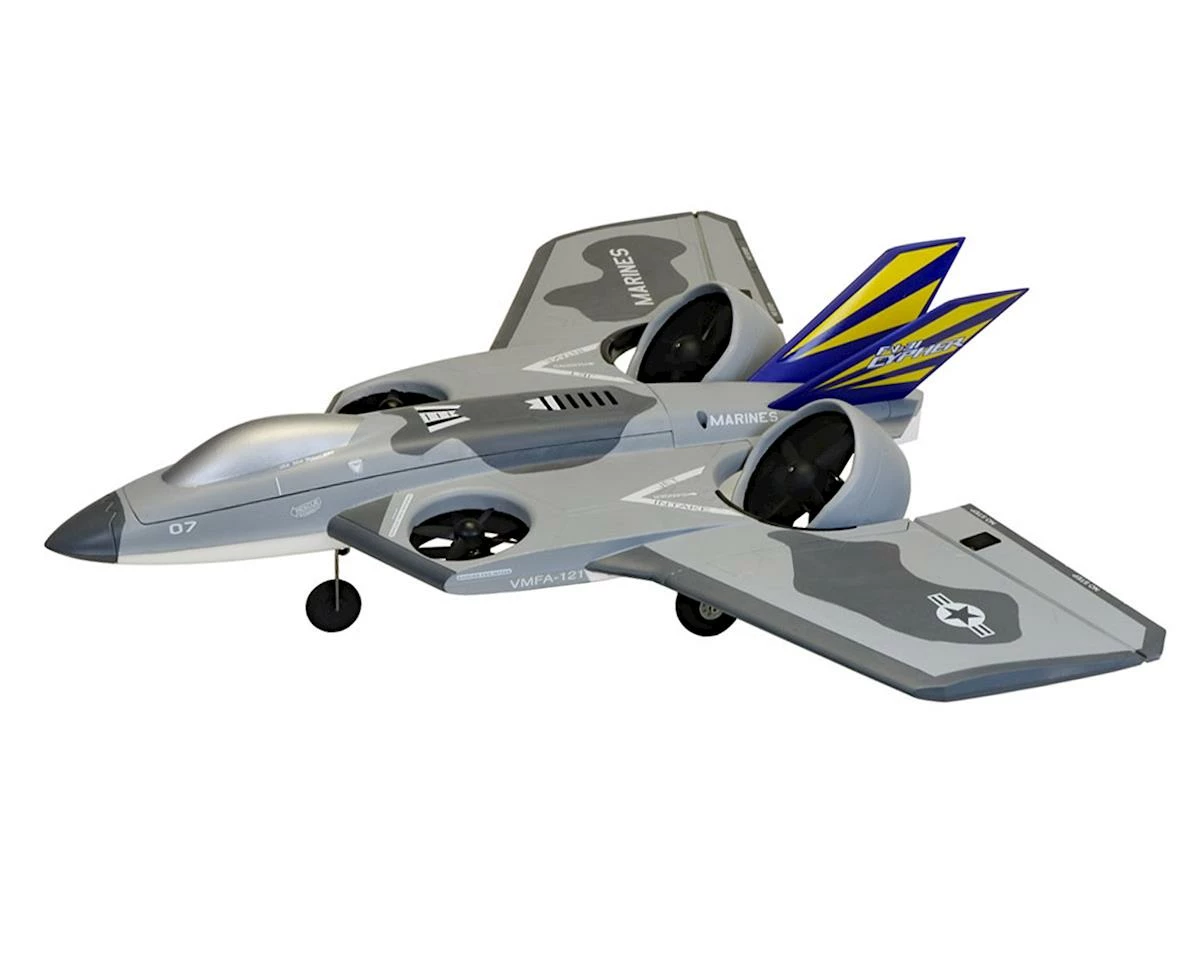

Flex Innovations FV-31 Cypher Super PNP Electric Airplane (Grey) (970mm)

The Flex Innovations FV-31 Cypher Super PNP Electric Airplane is an advanced and versatile vertical take-off and landing (VTOL) and short take-off and landing (STOL) model aircraft. Two fixed EDF units are mounted towards the leading edge of the wing, while two larger EDF units are mounted to a rotating pod at the rear of the aircraft. This advanced EDF configuration provides the greatest in total performance versatility, while remaining simple to use and easy to fly.

The Flex Innovations developed FLEXF3 stabilization board gives you a total of six unique ways to fly, while being able to choose between any of them at any time during the flight. These flight modes work seamlessly together to offer the most stable and predictable flight experience possible. Pilots will always retain total control, even during transitions between modes. The pilot can select between two stabilization profiles (Beginner and Advanced) as well as 3 distinct flight configurations (Hover, 45º “Magic” and Conventional).

The Beginner Profile: (6-axis)prevents the pilot from commanding the aircraft into an unwanted attitude (like inverted) by limiting the roll and pitch angles. Also, when the pilot centers his sticks, the aircraft will automatically return itself to level upright flight. This is extremely beneficial to newer pilots, or even for those more experienced pilots that may not be as comfortable with certain flight modes and just want that extra assistance.

The Advanced Profile: (3-axis) uses a more traditional stabilization and control type. This provides some assistance for helping dampen the effects of wind, torque and much more but the pilot won’t even notice that it is there. The aircraft is fully capable in this profile; from flips and rolls to pinwheels and insanely fast flat

spins, the pilot can fly uninhibited.

Hover Configuration: The rear EDF units are rotated near level and the aircraft flies similarly to a multi-rotor or helicopter. The aircraft can take off and land vertically and can fly in virtually any direction. Flips and rolls are even possible in this flight mode!

Conventional Configuration: The rear EDF units are rotated 90º so that they are perpendicular to the wing. In this configuration, the aircraft flies like any standard airplane, using the elevons for roll and pitch control. Amazing pinwheels and insanely fast flat spins can be done thanks to the aircraft’s differential thrust for yaw control.

45º ‘Magic’ Configuration: In this flight mode, the rear EDF units are rotated to a 45º angle, allowing for extremely short take-offs and landings, quick flips and rolls and more. The Cypher flies like a hybrid between an fixed-wing aircraft and a multi-rotor or helicopter in this flight mode. Unbelievably slow forward flight, while still being stable and in full control, even in higher wind speeds.

• Four EDF units for great power and control and improved safety.
• Bluetooth Module and Micro-USB cable included. Make adjustments and settings with any of these (see manual and WIKI for details):
• Apple iOS iPhone or iPad
• Android
• Windows 10 PC
• Assemble and Set-up in about an hour
• Stiff and light EPO Airframe
• Large battery compartment with easy component access
• (4) 40A 32 bit brushless ESC with Switching BEC
• (2) larger Rear, and (2) smaller Front custom-matched Potenza brushless Motors
• (3) Potenza DS15 digital servos for controls (2 x elevon, 1 x nose wheel steering)
• (1) S0090 Metal Gear standard Servo for rear fan tilt
• Precise ball bearing-supported tilt tube for rear fans
• Steerable nose-wheel and full landing gear for taxi, takeoff and landing
• Differential thrust yaw control in forward flight.
• Choice of two factory applied trim schemes

Wingspan: 38.2″ (970mm)

Length: 35.0” (890mm)

Weight: 3 lb 10 oz (1.68kg) (with 3S 3500 75C battery)

Fans: 4 Blade Custom Counter Rotating

Motors: Potenza (4) Custom Brushless

Needed to Complete:

• (1) 6+ Channel 2.4 GHz Transmitter
• (1) Matching Receiver
• Spektrum Users: (1) SPM4649T Serial Receiver Recommended
• Futaba Users: (1) FUTL7619 R2001SB Recommended
• (1+) 3s 45C+ LiPo Battery 2200-2600mAh w/EC-3 Connector
• (1) LiPo Battery Balance Charger System
• Misc Building Tools (Referenced in User Manual)
