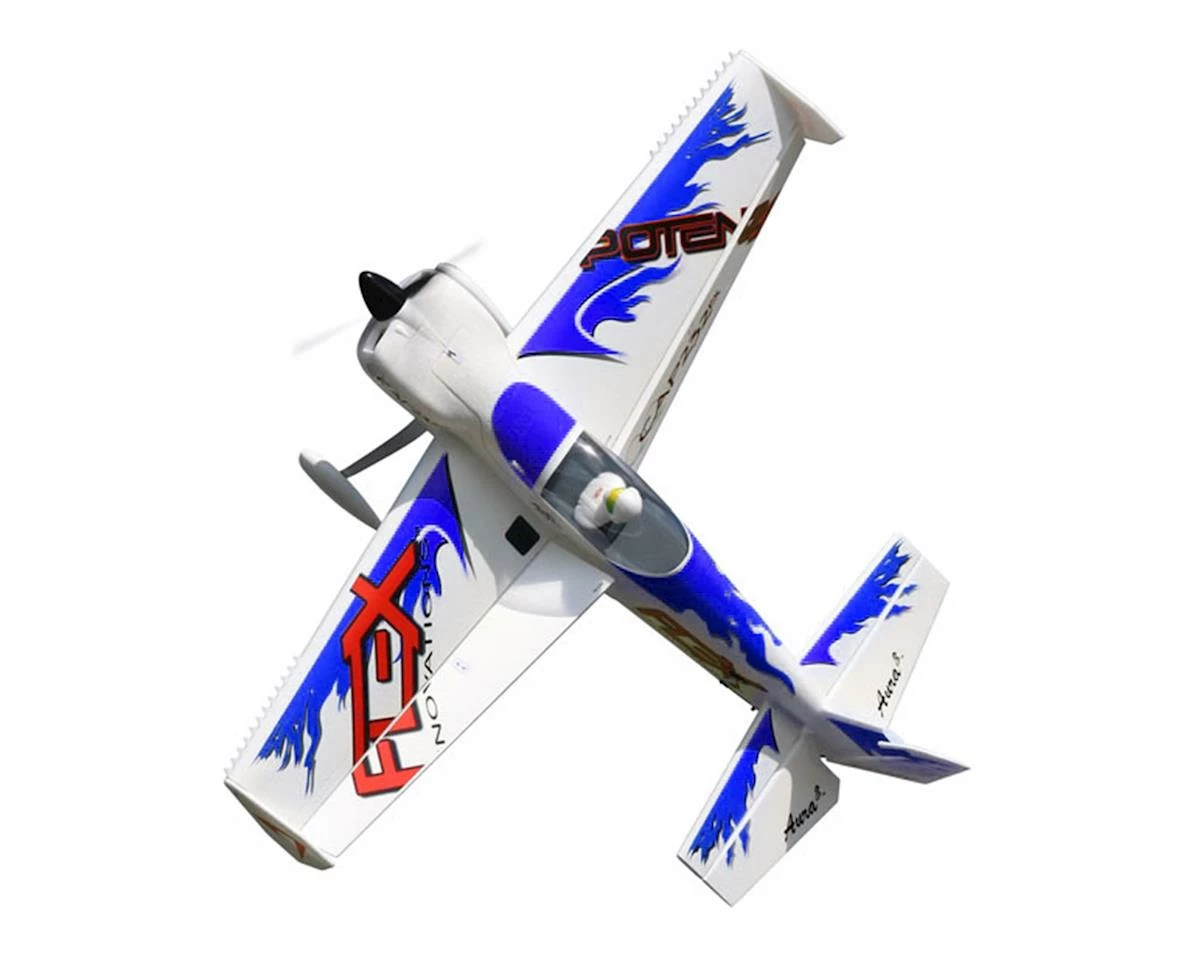

Flex Innovations QQ Cap 232EX Super PNP Electric Airplane (Night Blue) (1531mm)

The Flex Innovations QQ Cap 232EX is masterfully scaled from the iconic Cap 232EX. Designed to create an experience never seen before. Optimized aerodynamics combined with the Aura 8 revive the Cap 232’s flying performance to highest Flex Innovations standards. Carbon fiber is molded into the EPO foam throughout the fuselage and wings. A plywood sub-frame secures the power system and the aluminum landing gear ensuring the airframe is lightweight and rigid. The QQ Cap 232EX offers astonishing rock-solid, stable 3D aerobatic capability, along with smooth, predictable precision flying.

The perfect “next step” 3D aerobatic airplane to follow the QQ Extra 300 or Mamba 10!

Flex Innovations has tuned and matched both the air-frame and power plant to offer amazing flight times of 7-12 minutes. The Cap 232EX comes factory preset with the latest Aura 8 version 1.10 firmware allowing for increased stabilization and reduced “bounce back”.  Aura 8 connects via USB to your windows Tablet or PC, ensuring you have full adjustment of all settings and the latest firmware updates from the Flex Innovations Team.

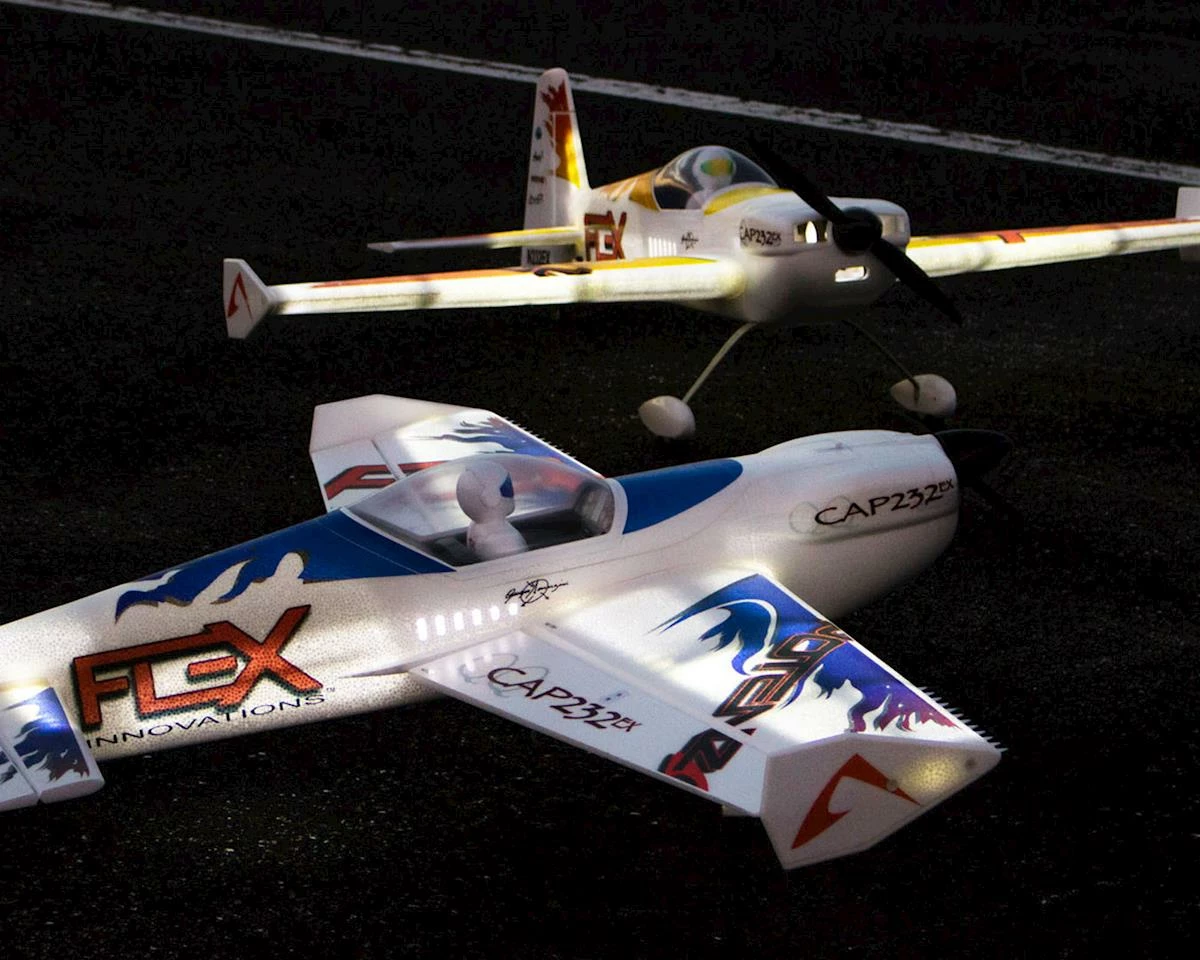

The Night Version (See other product Page) has an array of factory installed LED’s and includes an LED controller that is operated by your transmitter. The LED’s are operated off external 3s Li-Po or from the balancing connector of the 6s Li-Po motor pack . The internally mounted lights make the wings, fuselage, stab, and fin glow, creating an airplane that is bright but not blinding.



• Pre-Programmed Aura 8 FW v1.10 Advanced Flight Control System
• No control coupling
• Potenza DS34-C HV, high voltage metal gear high speed servos
• Light wing loading for easy handling
• 7 to 12-minute flight times depending on battery choice and throttle management
• Large choice of batteries 2800 to 5200 mAh on 5S or 6S
• Potenza 60 3D for amazing power and efficiency
• Hobby Wing 80A ESC with external BEC 8A at 7.4V
• Ball Link connections on all control surfaces
• Large battery compartment from top with single latch allows for easy access
• Innovative plywood sub-frame connects the motor securely to the fuselage while providing superior battery mounting and cooling
• Hollow wing with internal wood and carbon structure
• 16 x 6″ custom tooled Somenzini-Ribbe (SR) Prop for awesome grip at all speeds
• 2-piece plug-in wing with removable SFG’s make transportation a breeze
• Lightweight pilot bust included and easily removable for customization
• 3.5mm Aluminum Main Landing Gear

Wingspan: 60.2” 1531 mm

Length: 58.2” 1479 mm

Weight: 6 lb 3 oz 2.81 kg (with 6S 3500 battery)

Wing Area: 792 sq in 51 sq dm

Needed to Complete:

• (1) 6+ Channel 2.4 GHz Transmitter
• (1) Matching Receiver
• Spektrum Users: (2) SPM9745 Recommended
• Futaba Users: (1) FUTL7619 R2001SB Recommended
• Optional for ‘4 PWM’ (servo) RX connections with traditional receivers
• (4) Male to Male Servo Connectors (Gyro to RX Connection): PTK-5312
• (1+) 5s OR 6s 45C+ LiPo Battery 2800 to 5200mAh w/EC-5 Connector
• (1) LiPo Battery Balance Charger System
• Misc Building Tools (Referenced in User Manual)
