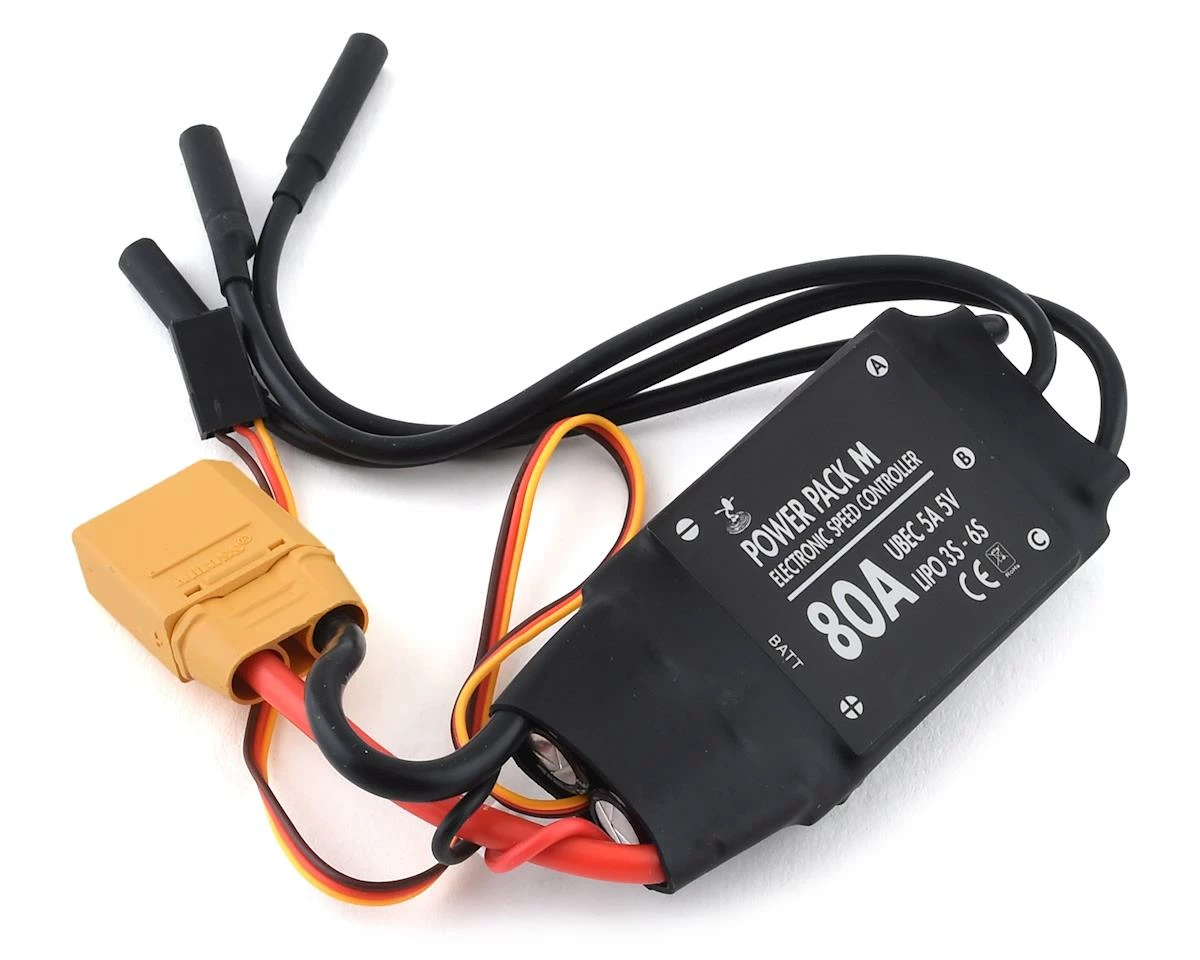

At Flite Test, we gave a lot of thought about what makes a great ESC. It’s pretty simple really but a couple of things were important to us:Â
- Pre-Soldered Connector:Â We took the liberty of adding an XT-90 connector to make it a simple connection to your battery.Â
- Pre-Soldered 4mm Bullet Connectors:Â This makes attaching to our FT Radial Motors a breeze. We suggest using the FT 80A ESC with the 4030 Radial Brushless motor.Â
- 5v / 5amp BEC:Â We like a BEC on our speed controllers because it allows you to power lower voltage demand accessories without having a second battery on board.
- Accessory Cable: The JST- PH-2.0 connector provides an easy connection to full battery voltage (3S to 6S) to power your accessories. Note: this is not a regulated power source! Full battery voltage is supplied at this connector!
Specifications:Â Â
Continuous Current: 80AÂ Â
Burst Current: 90A
Input Voltage:Â Â 7.4-22.2V (3-6S)
Dimensions: 53x36x15mm
Weight: 60g
BEC Output: 5A @ 5V
This product was added to our catalog on September 18, 2019
