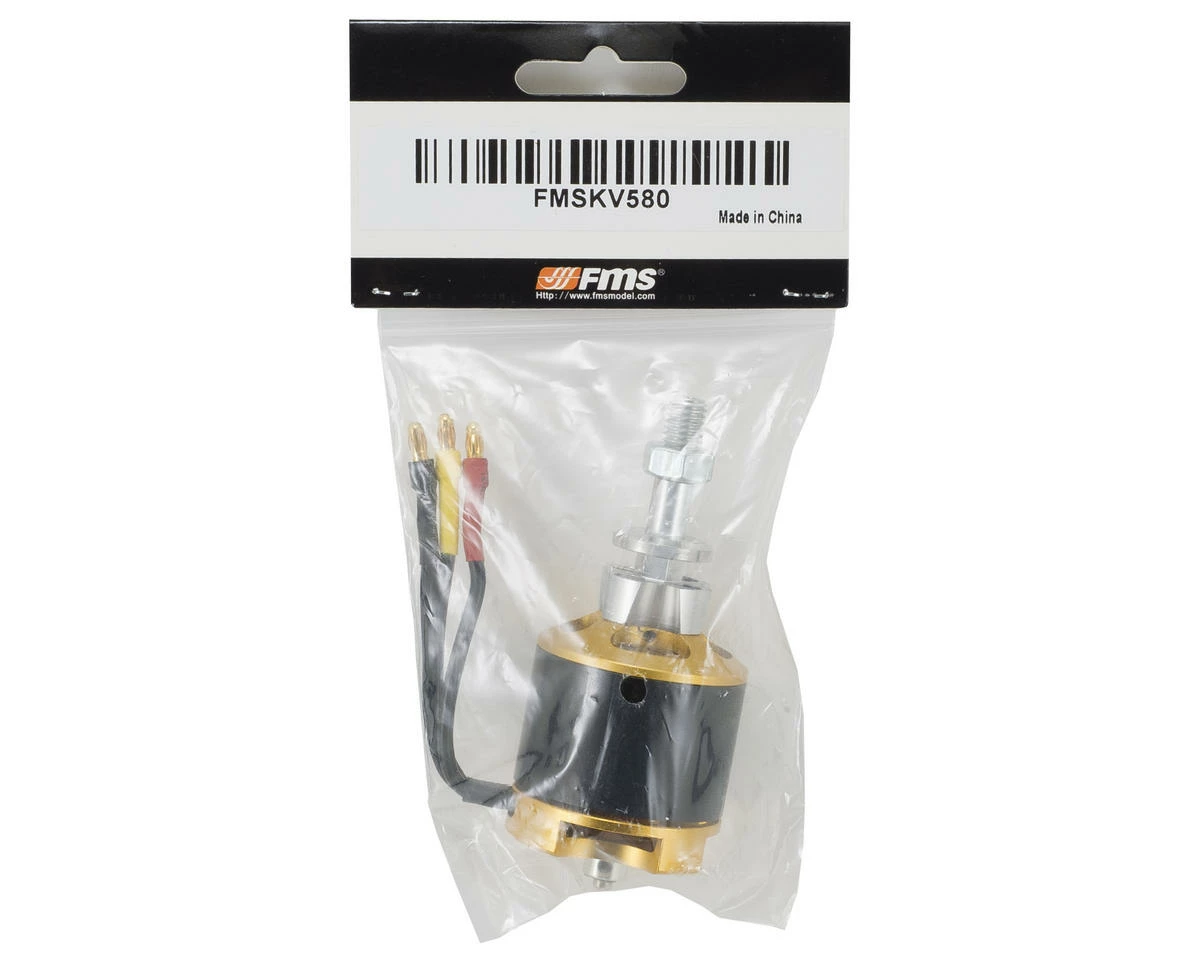

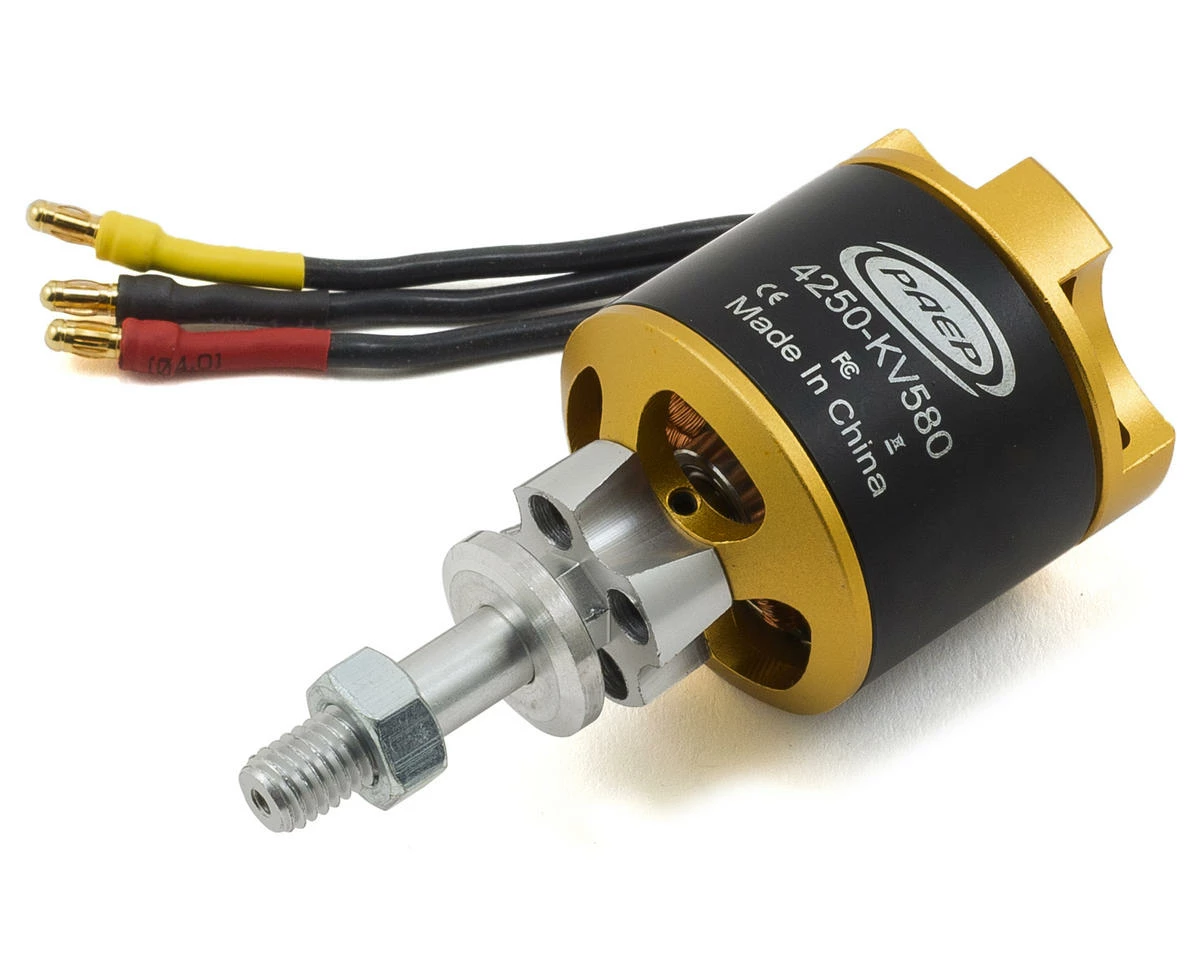

FMS 4250-KV580 Brushless Outrunner Motor (580kV)

This is the FMS 4250-KV580 Brushless Outrunner Motor. This motor is a direct replacement for the FMS 1400mm T28, Zero F6F, ‘new’ BF109 and FW190 airplanes.

Specifications:
Dimension: ?42.3x100mm
Weight (not including connectors): 245g
Voltage: 4S
Max Current: 2.0A
Length of Front Shaft: 37mm
ESC: 40-60A
Lamination Thickness: 21mm
Magnet Type: 45H
Kv (rpm/v): 580
Max Current: 56A
Resistance: 0.026mh
Max Voltage: 18V
Power: 860W
Shaft: M8
Length: 64mm
Diameter: 42.5mm
Can Length: 27mm
Total Length: 100mm

This product was added to our catalog on February 26, 2015
