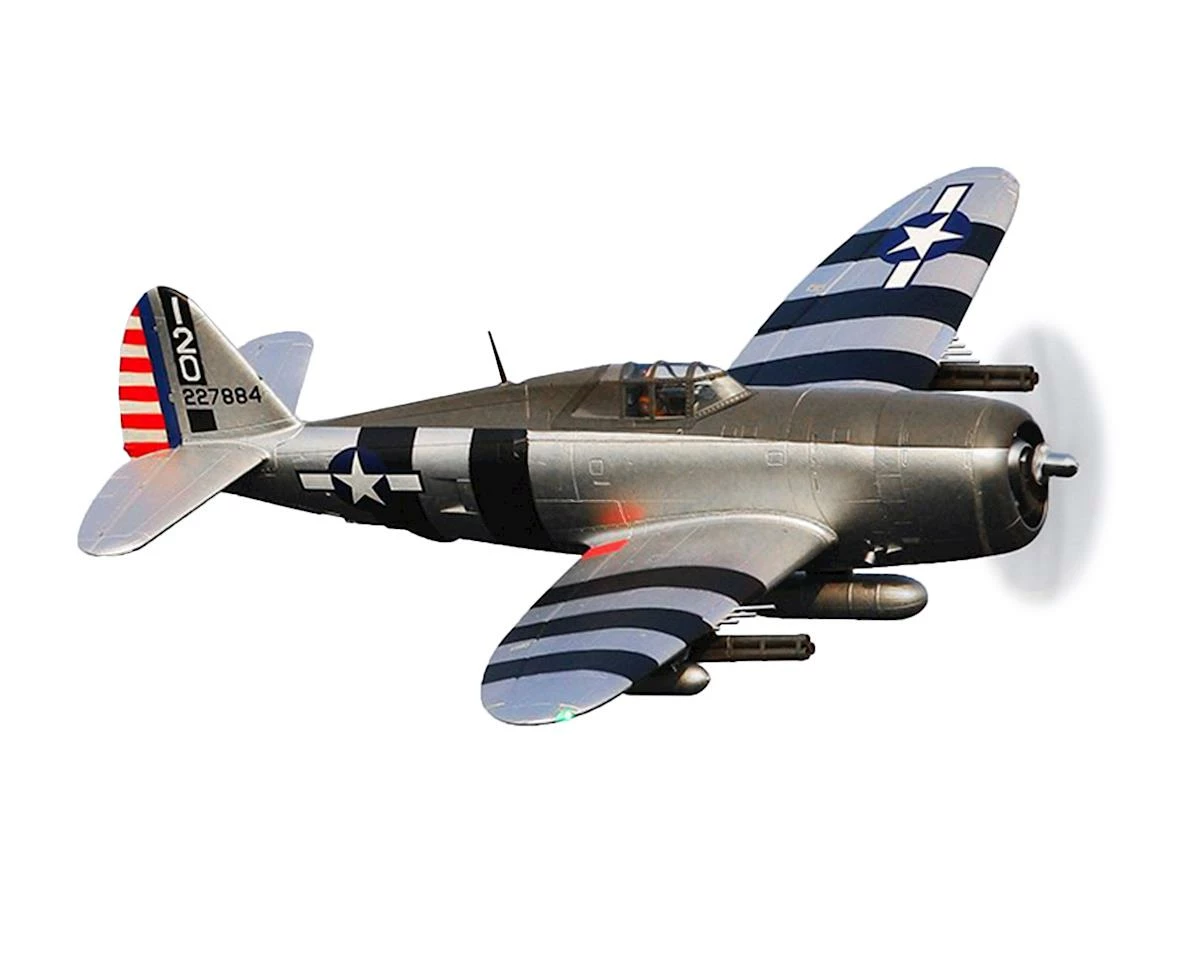

FMS P-47 Razorback Warbird Plug-N-Play Airplane (Bonnie) (1500mm)

A highly scaled, lightweight, and easy-to-assemble warbird, the FMS P-47 Razorback ‘Bonnie’ 1500mm adds a slew of innovations to a proven platform. Based on the original 1400mm P-47, the 1500mm model features a 99% scaled control surface, landing gear cover, cockpit interiors, plastic cowling, gun turrets, retracted landing gear, and panel lines.

The plane’s original oil paint has been replaced by the latest environmentally-friendly, water-based paint designed to protect its foam parts under any condition. It’s built with a lighter and larger EPO 52 foam, making the plane lighter, giving it impressive flight performance without weakening the airplane’s strength. The new CNC-processed shock-absorbed front landing gear helps to withstand those less-than-perfect landings. The control horn now adopts the new ball link design which results in a more dialed-in flight experience. The new 4258 KV 650 motor, coupled with the high quality Predator 70A ESC, completes a stronger, more powerful system. All servos are now metal gear digital servos. Plus, this 1500mm P-47 adopts the latest 2016 FMS electric retract, which upgrades appearance and performance.

Features:

• Impeccable scale detail
• Scaled flaps, landing gear cover, cockpit interiors, plastic cowling, gun turrets and skin line
• Environmentally-friendly water-based paint
• Updated lighter EPO 52 foam
• Shock absorbing metal oleo landing gear struts
• Retractable tail wheel with metal trunion
• Updated retract design specifically developed for this plane
• Screw-in servo pockets
• Single connector on both wings for easy assembly and disassembly
• LED lighting set
• Scale pilot
• Almost no glue required (but antenna, machine gun)
• Bearings-in wheel hub for better performance
• Nylon hinge material on control surfaces
• Ball link control horns on all control surfaces
• Wing spar in main wings strengthen the airplane
• Slide-out battery tray for easy battery swaps
• Metal digital servo throughout for outstanding control effect and stable flying performance
• 4258 KV650 motor with high-quality Predator 70A ESC

Specifications:
Aileron: Yes
Approximate Assembly Time: Less than 1 Hour
Approximate Flight Time: 5 minutes
Battery: Li-Po 22.2V 5000mAh 35C
CG (Center of Gravity): 3.5 – 3.7 in (90 – 95mm) From Leading Edge
Completion Level: Plug-N-Play
EDF Size: 64mm
Elevator: Yes
Flaps: Yes
Flying Weight: Approximately 8.2 lbs (3700g)
Length: 50 in (1270mm)
Material: Durable EPO
Minimum Required Radio: 6 Channel
Motor Size: Brushless 4258-KV460
Propeller Size: 14×8 – 4-blade
Retracts: Yes
Rudder: Yes
Servos: 9g Metal Digital Servos (3) and 17g metal Digital Servos (6)
Speed Control: 70A
Wingspan: 59 in (1500mm)

Includes:

• (1) P-47 Razorback PNP, 1500mm (Bonnie)
• (1) User Manual

Needed To Complete:

• 6+ Channel Radio System
• LiPo Battery
• LiPo Charger

This product was added to our catalog on December 23, 2016
