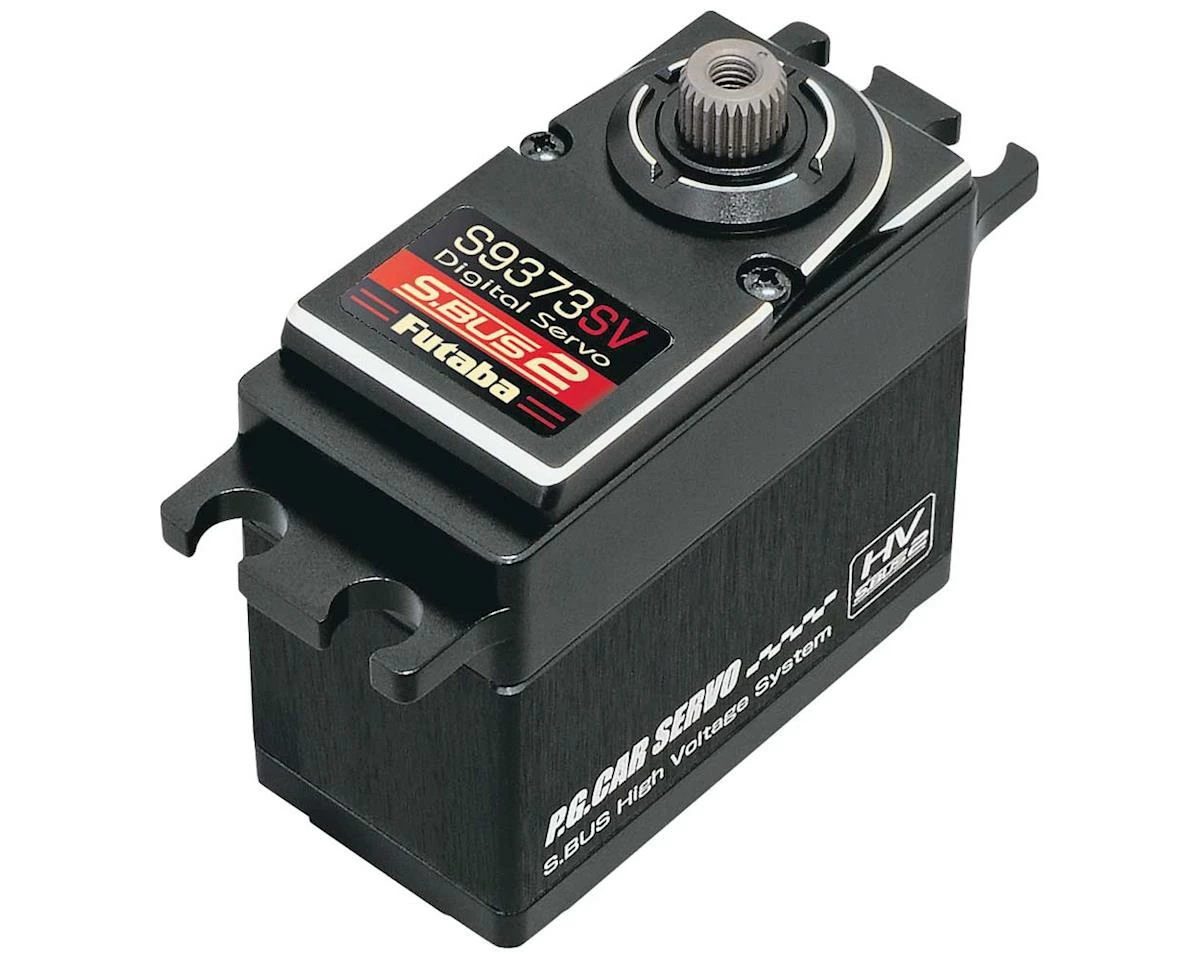

Futaba S9373SV SBus Hi Torque Voltage Metal Case Car Servo

Futaba S9373SV SBus Hi Torque Voltage Metal Case Car Servo.

Features:

• Programmable and compatible with S.Bus and S.Bus2 systems
• High voltage handles extra speed and power provided by 2S LiPo batteries
• Can be connected to a PC using the CIU-2 USB adapter sold separately
• Full metal case
• One year limited warranty through Hobby Services beginning at date of purchase

SBus Programmable Defaults

• Dead Band Degree: 0.11
• Damper Factor: 144
• Stretcher Gain: 2
• Boost: 10
• Neutral Offset Degree: 0
• Travel Adjust Percentage: 100%
• Reverse (Normal/Reverse): Nor
• Stop Mode (Free/Hold): Hold
• Buzzer (On/Off): Off
• Smoother (On/Off): On
• Boost (On/Off): Off

Includes:

• S9373SV S.Bus High-Torque HV P.G. Car Servo
• 1.7″ (44mm) 3 Arm Servo Horn
• Two Rubber Grommets
• Four Eyelets
• 3x8mm Servo Horn Screw

Specifications:

• Torque:
• @6.0V: 280oz-in (20.1kg-cm)
• @7.4V: 341.7 oz-in (24.6kg-cm)
• Speed:
• @6.0V: 0.07 sec/60°
• @7.4V: 0.06 sec/60°
• Dimensions: 1.6 x 0.83 x 1.43″ (40.5 x 21.0 x 36.2mm)
• Weight: 2.7oz (76g)
