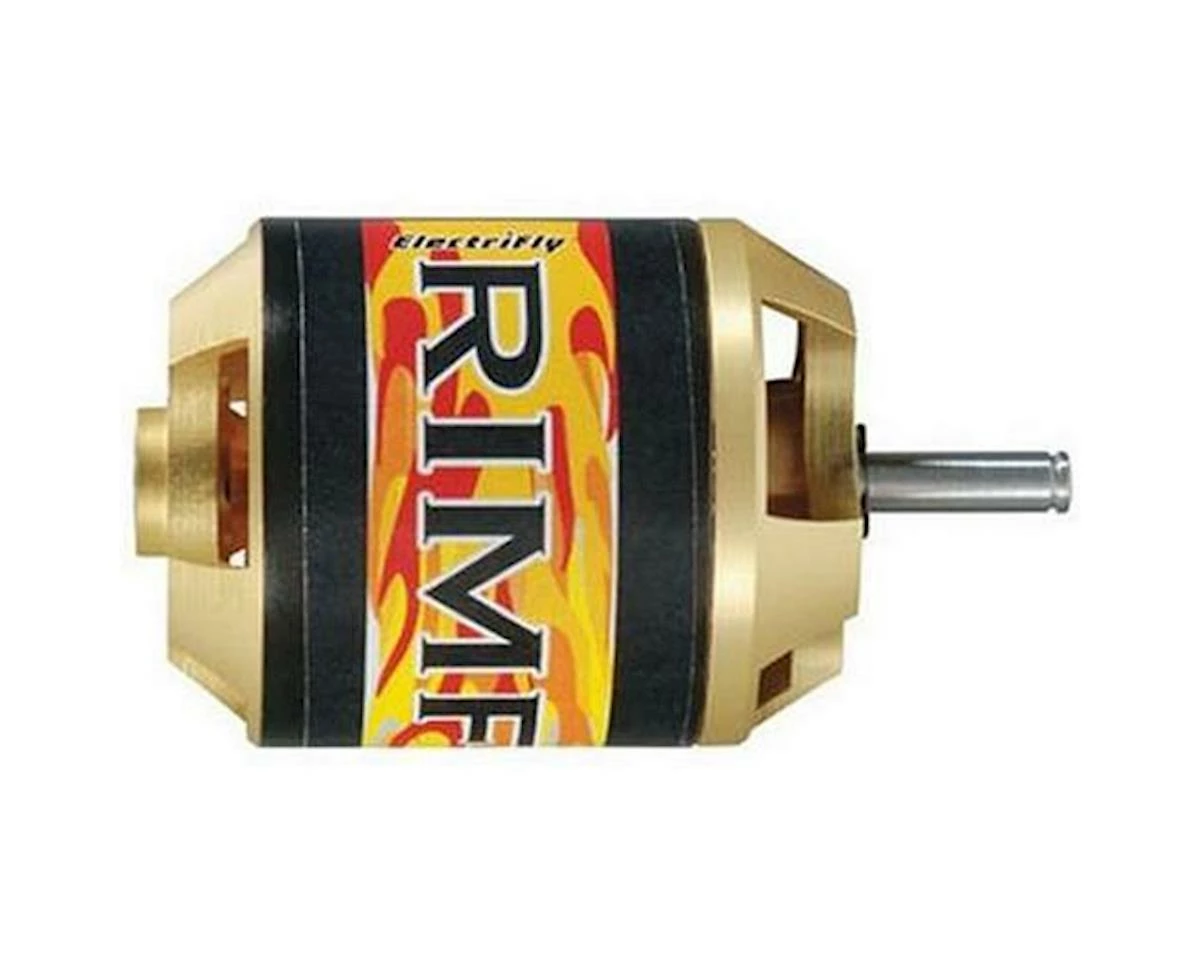

Great Planes Rimfire .46 42-60-800 Outrunner Brushless Motor

This is a Great Planes Rimfire .46 42-60-800 Outrunner Brushless Motor. Just as Ammo motors have revolutionized brushless inrunner technology, RimFire motors have done the same for outrunners. The combination of superior performance and a competitive price makes these power plants a great value. Plus, the wide selection means there’s a RimFire motor that’s ideal for whatever the application, including brushed-to-brushless upgrades as well as glow-to-electric conversions. Equip your airplane with a RimFire, and watch it reach new heights!

• For Sport airplanes up to 7.5lbs (3400g) and 3D airplanes up to
• 5lbs (2210g)
• Designed for explosive acceleration and maximum torque eliminating
• the need for a gearbox
• Lightened aluminum can houses high torque rare earth Neodymium
• magnets
• Double shielded bearings
• Virtually maintenance-free; no commutators or brushes to wear out
• Two year quality guarantee

Motor Diameter: 1.65″ (42mm)

Motor Length: 2.36″ (60mm)

Shaft Diameter: .20″ (5mm)

Shaft Length: .67″ (17mm)

Lead Length: 3″ (76mm)

Connectors: Bullet type, 4.0mm diameter

Max. Constant Current: 60A

Max. Surge Current: 100A

Max. Constant Watts: 1110W

Burst Watts: 1850W

No Load Current: 4.6A

Input Voltage: 18.5-22.2V (5-6S LiPo)

RPM/V (kV Rating): 800

Weight: 9.5oz (268g)

Suggested Propeller Size: 10 x 5E-11 x 5E

• Great Planes ElectriFly RimFire .46 42-60-800 Brushless Outrunner
• Electric Motor
• Outrunner Motor Mount GPMG1205
• Outrunner Prop Adapter GPMQ4906

• Brushless Motor-compatible 60A Electronic Speed Control
• Propeller: Depending on aircraft application
