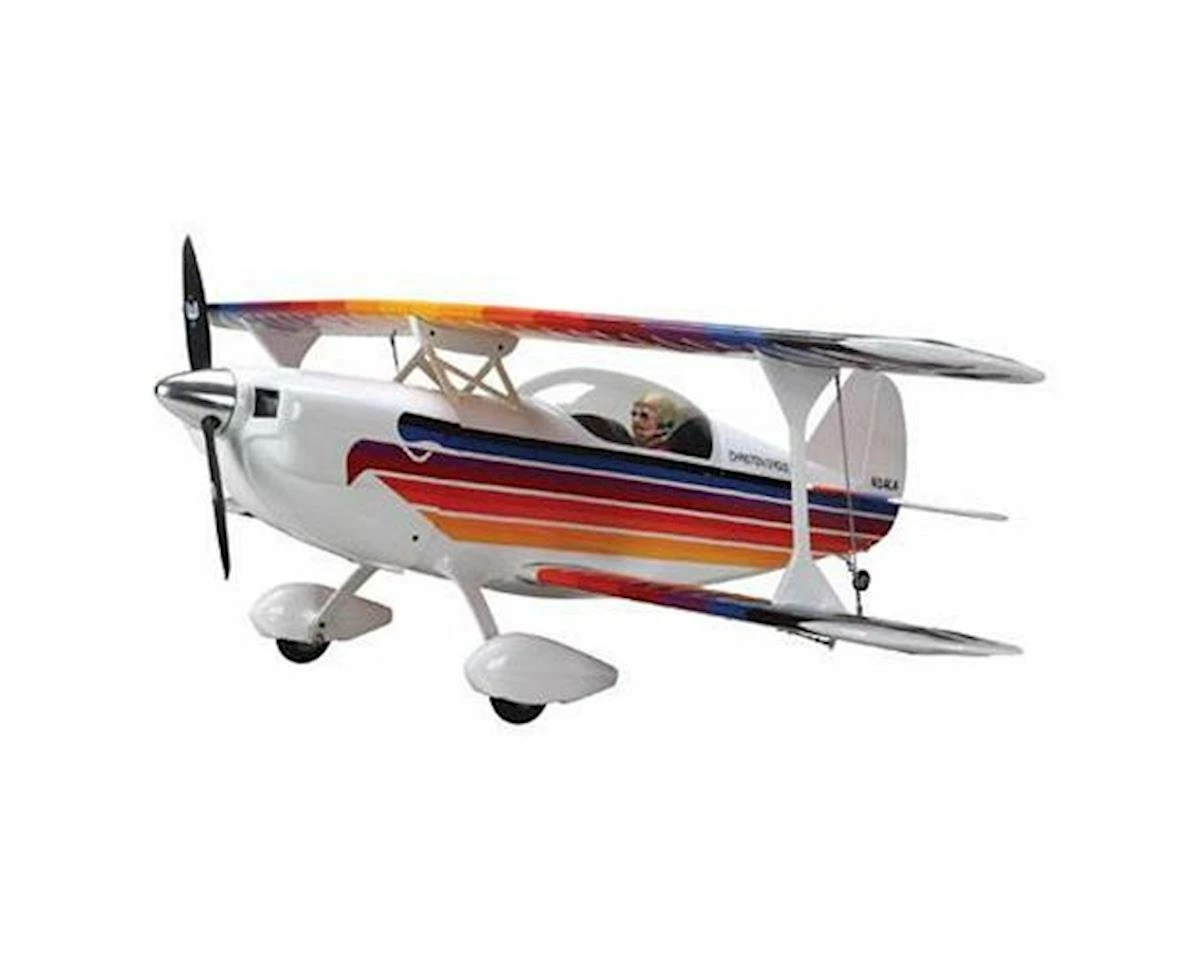

Hangar 9 Christen Eagle II 90 ARF Nitro Airplane (1370mm)

Introduced in 1977, the Christen Eagle II was the brainchild of avid aerobatic pilot and entrepreneur,Frank Christensen. His idea? Give pilots a refined, aerobatic kit plane almost anyone could build.The sporty little two-seater was so well-received that a slightly modified, single-seat versionbecame the plane of choice for one of the greatest aerobatic demonstration teams of all time –Charlie Hillard, Tom Poberezny and Gene Soucy, otherwise known as The Eagles. The trio flew theplane from 1979 through 1995, thrilling millions at air shows all over the world.

The Hangar 9® Christen Eagle II 90 ARF brilliantly captures the spirit of this remarkable airplane. Constructed of topquality balsa and light plywood, it will eagerly perform extreme aerobatics just like its full-scale inspiration using yourchoice of glow or brushless electric power options. And it comes out of the box with a level of scale fidelity that trulysets it apart from the rest of the sport model crowd.

If you’re a sport flier ready for more advanced planes or an aerobatic pro looking for a fun, sport scale model, the Christen Eagle II 90 has what you’re after.

Key Features:

• Lightweight balsa/plywood construction
• Impressive scale outline
• Multi-color Eagle UltraCote® trim scheme
• Painted fiberglass cowl and wheel pants
• Designed for glow or electric power
• Large, easy-access top hatch
• Cockpit details and pilot figure included
• All hardware included
• Wing transport frames included

Specifications:

• Wingspan: 54.0 in (137 cm)
• Overall Length: 50.8 in (129 cm)
• Wing Area: 878 sq. in. (56.7 sq. dm.)
• Flying Weight: 8.50 – 10.0 lb (3.85 – 4.50 kg)
• Engine Size: .75 – .91 2-stroke; 1.15 – 1.25 4-stroke
• Motor Size: Power 90
• Radio: 4 channel radio system minimum
• Servos: 5 standard size servos required (4 for EP)
• Trim Scheme Colors: UltraCote White, Deep Blue, Orange, Black, Smoke Purple, Deep Red, Flame Red, Dark Yellow, Bright Yellow
• CG (center of gravity): 5 to 5-1/2 inches behind the leading edge of the upper wing at center
• Wing Loading: 22.3-26.2 oz/sq ft (67.9-79.3 g/sq dm)
• Prop Size: Saito 125: 16 x 6; Power 90: 17 x 8E
• Spinner Size: 2.75 inch
• Speed Control : 75-Amp
• Recommended Battery: 14.8V 4000mAh 4S 30C LiPo x2
• Flaps: No
• Retracts: No
• Control Throw (Ailerons): Low: 15mm up/down, 33% expo; High: 22mm up/down, 42% expo
• Control Throw (Elevator): Low: 25mm up/down, 30% expo; High: 35mm up/down, 42% expo
• Control Throw (Rudder): Low: 35mm right/left, 35% expo; High: 45mm right/left, 45% expo
• Minimum Age Recommendation: 14 years
• Experience Level: Intermediate
• Recommended Environment: Outdoor
• Assembly Time: 10-15 Hours
• Is Assembly Required: Yes

Needed To Complete:

4-cycle Setup:
– 4+ channel Transmitter and Receiver radio system
– Engine
– Propeller
– Glow Plug
– Fuel
– Receiver Battery
– (5) Standard Servos

Electric Setup:
– 4+ channel Transmitter and Receiver radio system
– Motor
– ESC
– (2) 4000mAh+ 30C 4S LiPo Batteries
– LiPo-compatible Charger
– Propeller
– (4) Standard Servos

This product was added to our catalog on February 15, 2021
