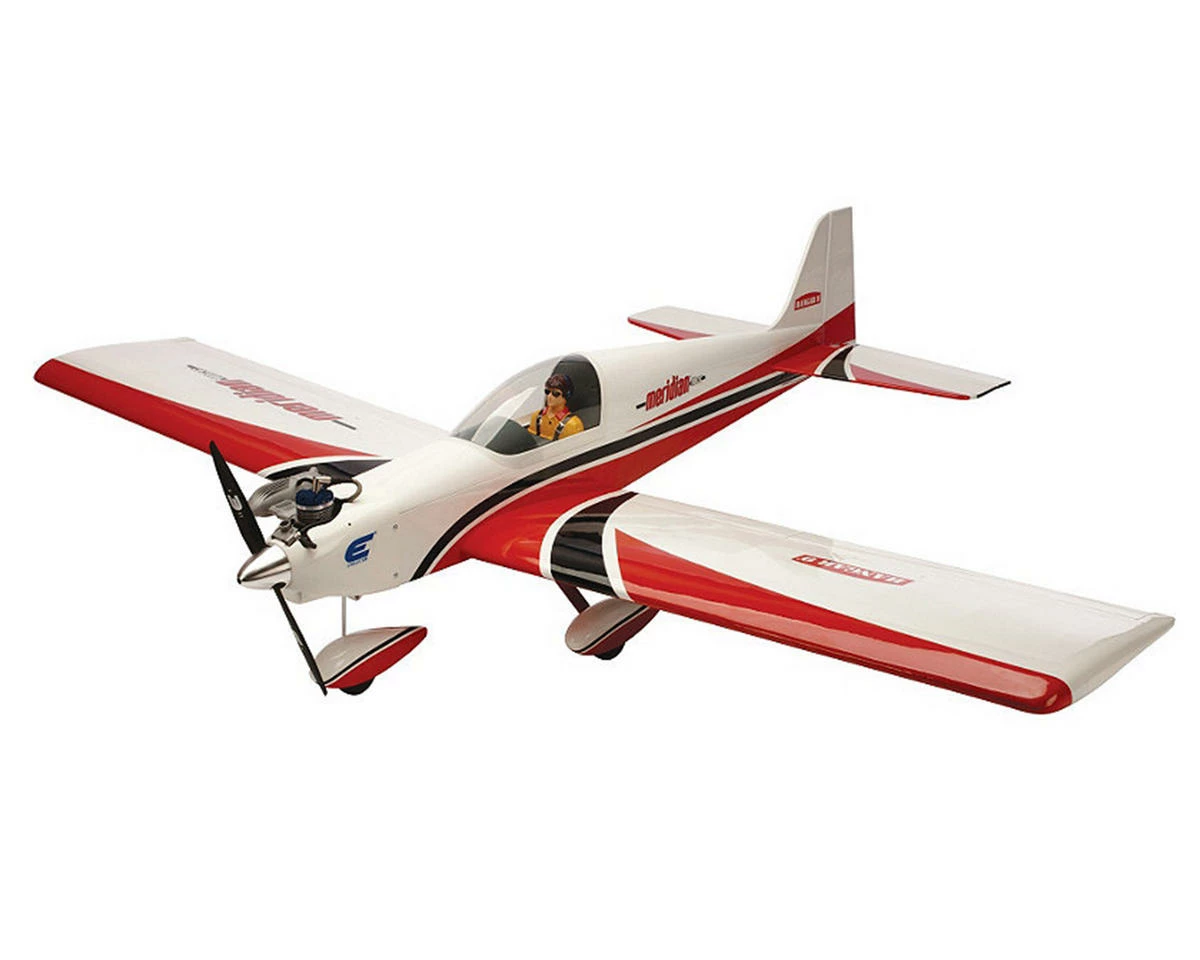

Hangar 9 Meridian 10cc ARF (1750mm)

This is the Hangar 9 Meridian 10cc Almost Ready to Fly Airplane. The Meridian 10cc ARF aircraft embodies the pure joy of what RC sport flying is about. From its long fuselage and stylishly shaped tail surfaces to the super stability of its generously proportioned constant-chord wing, every feature ties together. A perfect next-level sport airplane designed to have familiar forgiving manners, it appeals to the veteran and novice RC pilot. Its exceptional construction is lightweight without sacrificing strength or rigidity and is oversized just enough to deliver better visibility and great handling. In addition, its functional flaps add a level of capability that complements the ease and grace in which this low-wing model performs sport aerobatics and smooth landings.

The Meridian can be finished as an electric or glow powered model, but the aircraft truly shines when powered by an Evolution 10cc gas engine. Besides the thrilling experience this engine offers, you’ll enjoy the ease of use and reliability that outclasses the hassles and expense of using glow fuel. Because the Evolution 10cc gas engine is so economical, you’ll carry less fuel in the airplane, which means less weight for the same amount of flight time.

Features:

• Designed to fit the Evolution® 10cc gas engine
• Flaps for expanded flight envelope
• Tricycle landing gear
• Covered in genuine UltraCote® covering
• Landing gear attached to fuselage
• Large top fuselage hatch for easy access to radio gear and EP battery
• Pre-painted fiberglass cowl and wheel pants
• EP-ready
• Two-piece plug-in wings
• Preinstalled pilot figure and instrument panel

Specifications:
Wingspan: 69.0 in (175 cm)
Overall Length: 55.5 in (140 cm)
Wing Area: 880 sq in (56.8 sq dm)
Flying Weight: 7.0–8.0 lb (3.2–3.7 kg)
Engine Size: 10cc gas; 0.52-0.61 2-stroke glow; 0.62-0.72 4-stroke glow
Motor Size: Power 46
Radio: 5-channel radio system minimum
Servos: 7 standard servos (6 for EP)
Trim Scheme Colors: UltraCote® covering – True Red (U866), White (U870), Black (U874)
CG (center of gravity): 3.3-3.8 in (84-96mm) behind the leading edge
Wing Loading: 18.3–20.9 oz/sq ft (56.3–65.1 g/sq dm)
Prop Size: 12 x 6–13 x 6 (10cc); 14 x 7E (EP)
Spinner Size: 2.25 in (57mm)
Recommended Battery: 14.8V 4S 4000mAh Li-Po
Flaps: Yes
Retracts: No
Control Throw (Ailerons): Low: 0.5 in (13mm) up/down; High: 0.75 in (19mm) up/down; 20% Expo
Control Throw (Elevator): Low: 0.75 in (19mm) up/down; High: 1.0 in (25mm) up/down; 20% Expo
Control Throw (Rudder): Low: 1.0 in (25mm) left/right; High: 1.5 in (38mm) left/right; 20% Expo
Control Throw (Flaps): 0.75 in (19mm) mid flap; 1.50 in (38mm) full flap
Minimum Age Recommendation: 14 years
Experience Level: Intermediate
Recommended Environment: Outdoor
Assembly Time: 10-15 Hours
Is Assembly Required: Yes

Needed To Complete:

• Common Radio Equipment:
• 5+ channel transmitter and receiver radio system
• Receiver pack
• Charge switch
• Standard servos (7)
• Gas Setup:
• 10cc 2-stroke gas engine
• Muffler
• Propeller
• Starter battery
• Fuel
• Fuel tubing
• Electric Setup:
• 46-size motor
• Speed controller
• Flight battery
• Charger for flight battery
• Propeller

This product was added to our catalog on December 20, 2012
