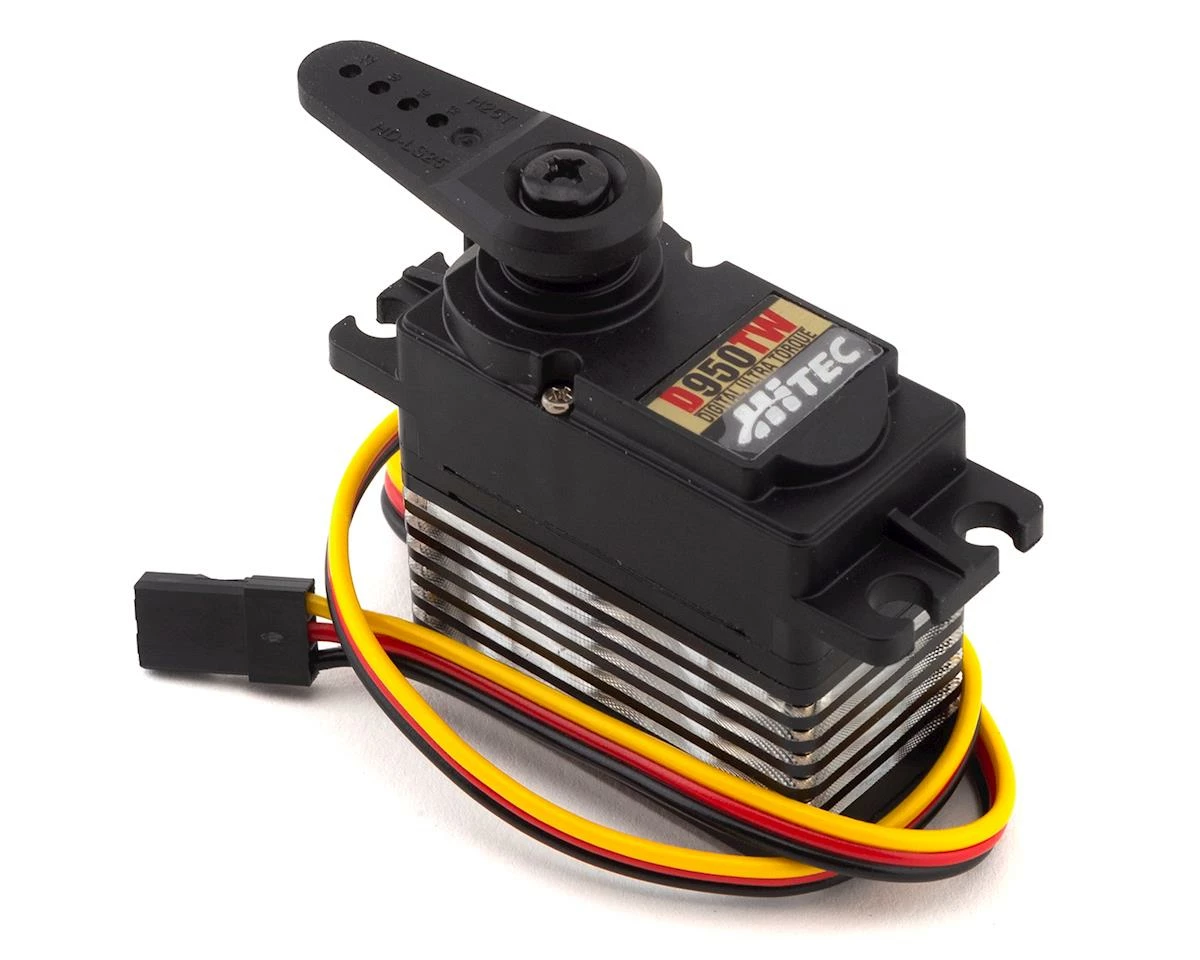

Hitec D950TW D-Series Ultra Torque Titanium Gear Digital Servo (High-Voltage)

The Hitec D950TW D-Series Ultra Torque Titanium Gear Digital Servo features cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.



Features:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Specifications:
Size Category: Standard
Type: Digital
Torque: 292 oz-in @ 4.8v, 403 oz-in @ 6.0v, 486 oz-in @ 7.4v
Speed: 0.23 @ 4.8v, 0.17 @ 6.0v, 0.14 @ 7.4v
Dimensions (WxLxH): 1.57 x 0.79 x 1.50 in (39.9 x 20.1 x 38.1 mm)
Bushing Or Bearing: Bearing
Bearing: Dual
Gear Type: Metal
Gear Material: Titanium

This product was added to our catalog on July 25, 2019
