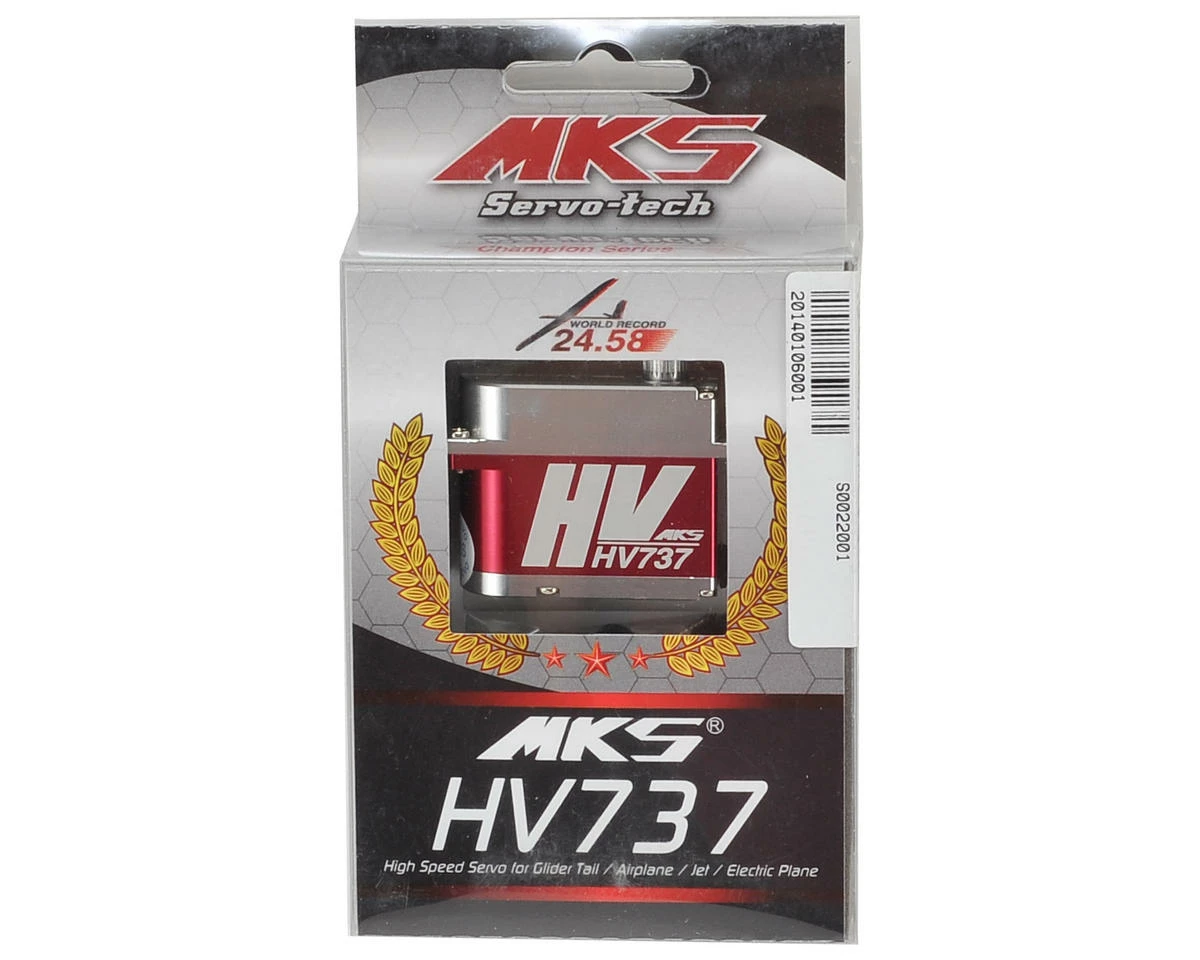

MKS Servos HV737 Titanium Gear High Speed Servo w/Aluminum Case (High Voltage)

This is an MKS HV737 Titanium Gear High Speed Servo with Aluminum Case. This high speed servo is a great choice for glider, airplane and jet tail applications.

Features:

• 12 x 20 mm coreless motor, High efficient, More durable
• 9mm VR, Ultra high-resolution
• Unique gear structure with reduced backlash

Specifications:

• Torque:
• @6.0V: 115.2 oz-in (8.3 kg-cm)
• @7.4V: 126.3 oz-in (9.1 kg-cm)
• @8.2V: 141.6 oz-in (10.2 kg-cm)
• Speed:
• @6.0V: 0.12 s
• @7.4V: 0.10 s
• @8.2V: 0.09 s
• Weight: 38.55 g
• Dimension: 35.5x15x28.5mm
• Working Voltage: 5.5 ~ 8.4 V DC Volt
• Working Frequency: 1520μs / 333hz
• Dead Band: 0.001 ms (Default)
• Bearing: Dual Ball Bearings
• Motor: Coreless Motor
• Gear: Chrome-Titanium alloy gear
• Electric Current Draw： 2.6A max. (8.2V)│2.4A max. (7.4V)│2.0A max (6.0V)
• Wire Length： 29.5 cm



This product was added to our catalog on August 11, 2014
