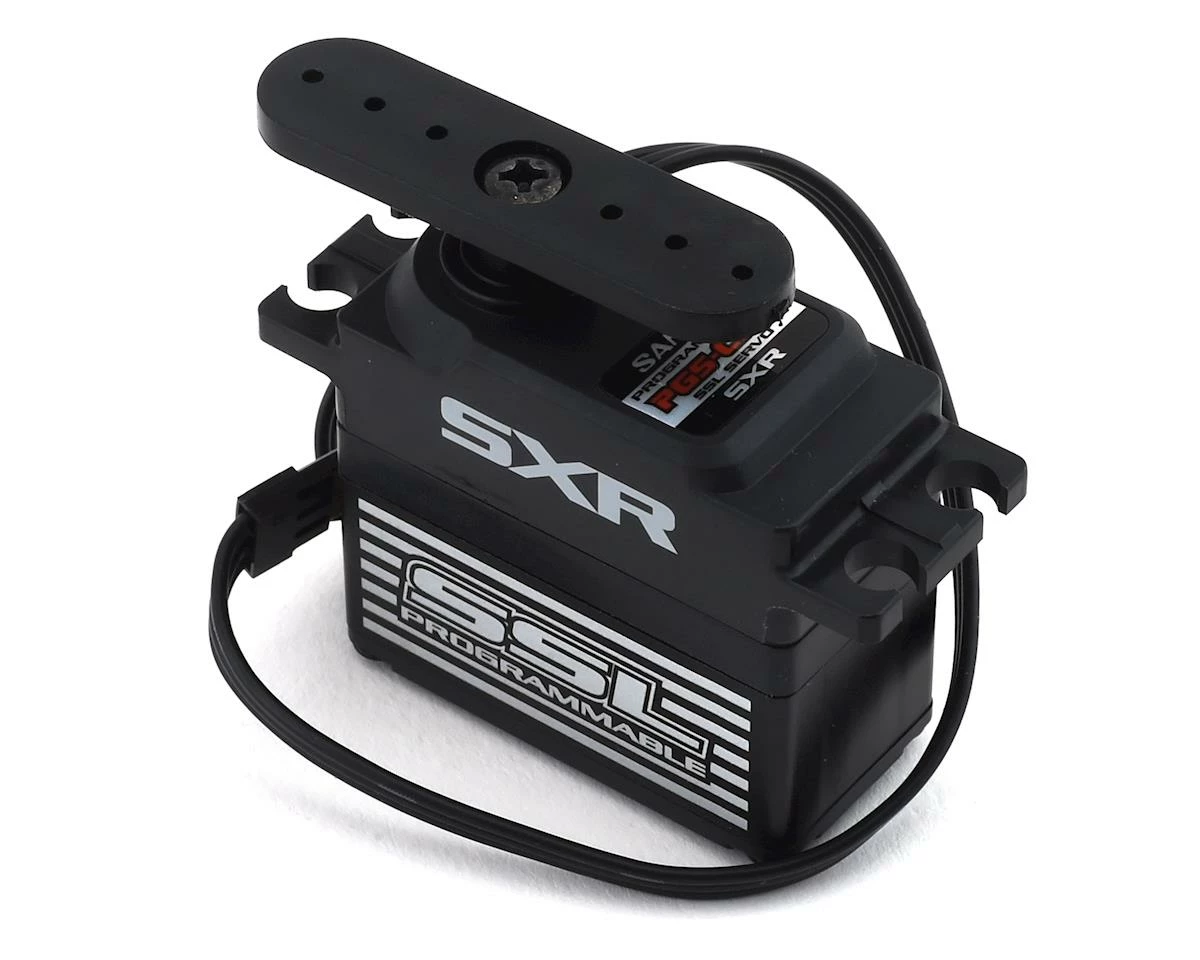

Sanwa/Airtronics PGS-CX II Hi-Torque Programmable Servo (High Voltage)

Features:

• SSL Compatible *Compatible with CODE10 (M12S (RS), Exzes ZZ, MT-44). Not compatible with CODE5 (M12, Exzes Z, MT-4S, MT-4, MT-S)
• MULTI SETTING GEAR compatible *Not compatible with PGS SETTING GEAR
• SSR mode compatible
• SHR mode compatible
• Lipo 2 cell battery compatible
• High torque type
• Coreless motor
• Metal Gears
• AL Heat Sink

• Programmable Servo to be compatible with SSL & Telemetry
• Setting Adjustment by wireless from Radio
• Setting Adjustment to connect Servo with Multi Setting Gear
• Regarding Temperature, Current, Voltage and Volume Position on Servo inside,Telemetry-transmission can be passed to Radio. *Initial Setting on Multi Setting Gear is necessary.

• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (BOOST Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Break Adjustment)
• ?MV-HOLD (Power Adjustment at whole area) *Multi Setting Gear is required
• ?MV-FRQ (Feeling Adjustment at whole area) *Multi Setting Gear is required
• ?MAX-PW (MAX Duty Adjustment) *Multi Setting Gear is required

• Speed:
• @7.4V: 0.11 sec / 60°
• @6.0V: 0.13 sec / 60°
• Torque:
• @7.4V: 368.01 oz-in (26.5 kg-cm)
• @6.0V: 323.57 oz-in (23.3 kg-cm)
• Dimensions: 40.5 X 20.5 X 37.2 mm
• Weight: 59 g
