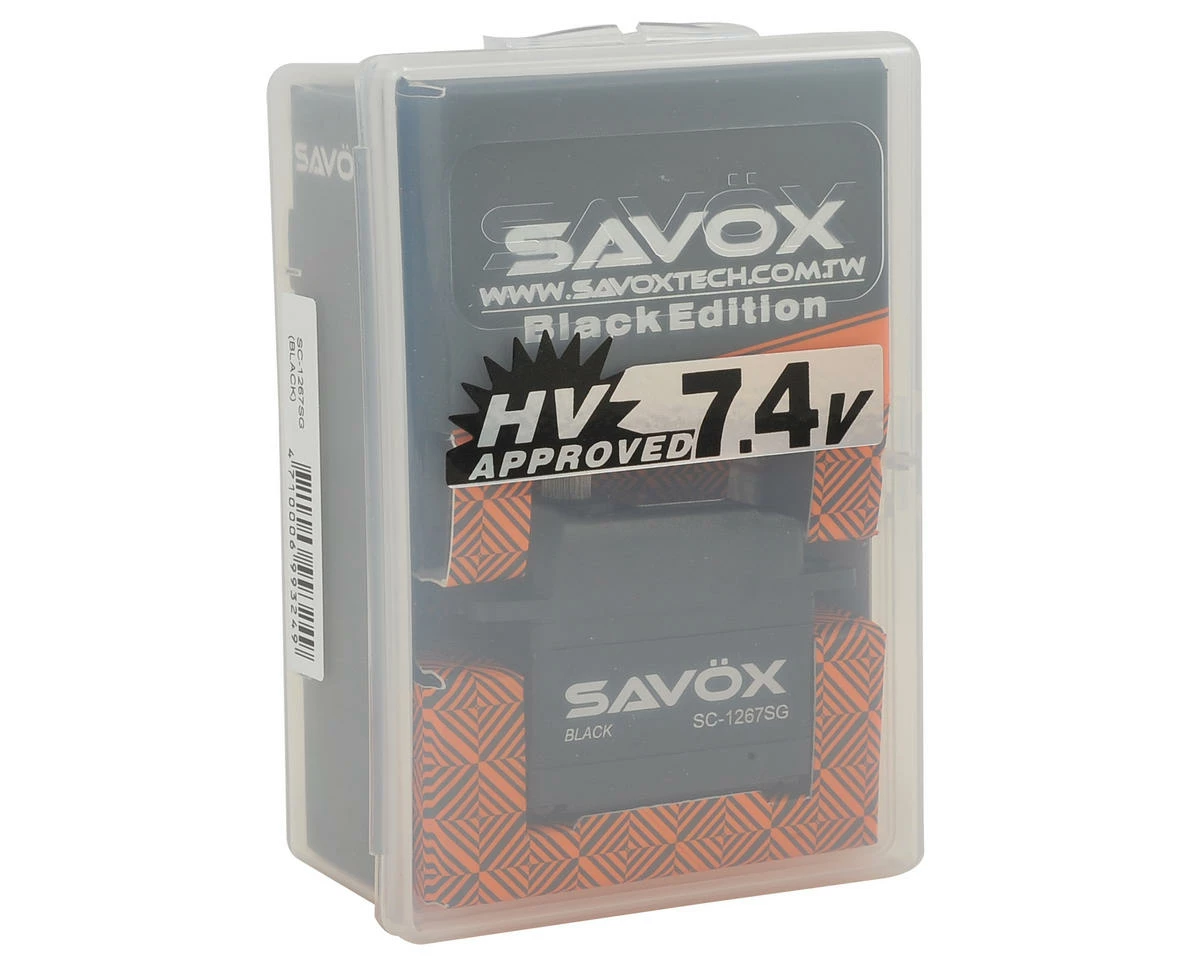

savox SC-1267SG Black Edition Super Speed Steel Gear Servo (High Voltage)

Savox’s SC-1267SG Black Edition Standard Digital “Super Speed” Digital Steel Gear Servo features a sleek black aluminum center case with laser etched details, as well as a 200mm long heavy duty lead wire. The SC-1267SG servos combine leading edge high voltage technology with super high 12 bit (4096) resolution. These high voltage servos also feature a redesigned motor/controller unit, and use a ‘bullet proof’ all steel gear set for unmatched strength that makes them a great choice for 1/8 nitro cars, as well as large scale airplanes and 600-700 class heli swashplate applications when you want lightning fast reaction.

Features:

• No Regulator needed
• Higher performance due to increased voltage and improved technology
• Fast response
• Incredible torque
• Increased transit speed
• Increased efficiency
• Water resistant with 4 silicon seals implanted
• Strong and precise-made steel gears
• Suitable for 1/8th nitro racing and large scale aircraft
• Suitable for 600 and 700 class helicopter swash plate servos.

*NOTE: Certain combinations of receiver and ESC have been found to cause “Brown Out” issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.

Specifications:

• Speed:
• @4.8V: .13 sec/60
• @6.0V: .11 sec/60
• @7.4V: .09 sec/60
• Torque:
• @4.8V: 130.0 oz-in
• @6.0V: 180.5 oz-in
• @7.4V: 277.7 oz-in
• Dimensions: 40.3×20.2×37.2mm
• Weight: 62.0g
• Gear: Unique Steel
• Bearing: 2BB
• Case: Aluminum
• Output Shaft: 25 Tooth Spline
• Frequency: 250-333hz
• Pulse Width Frequency: 1520

This product was added to our catalog on September 29, 2015
