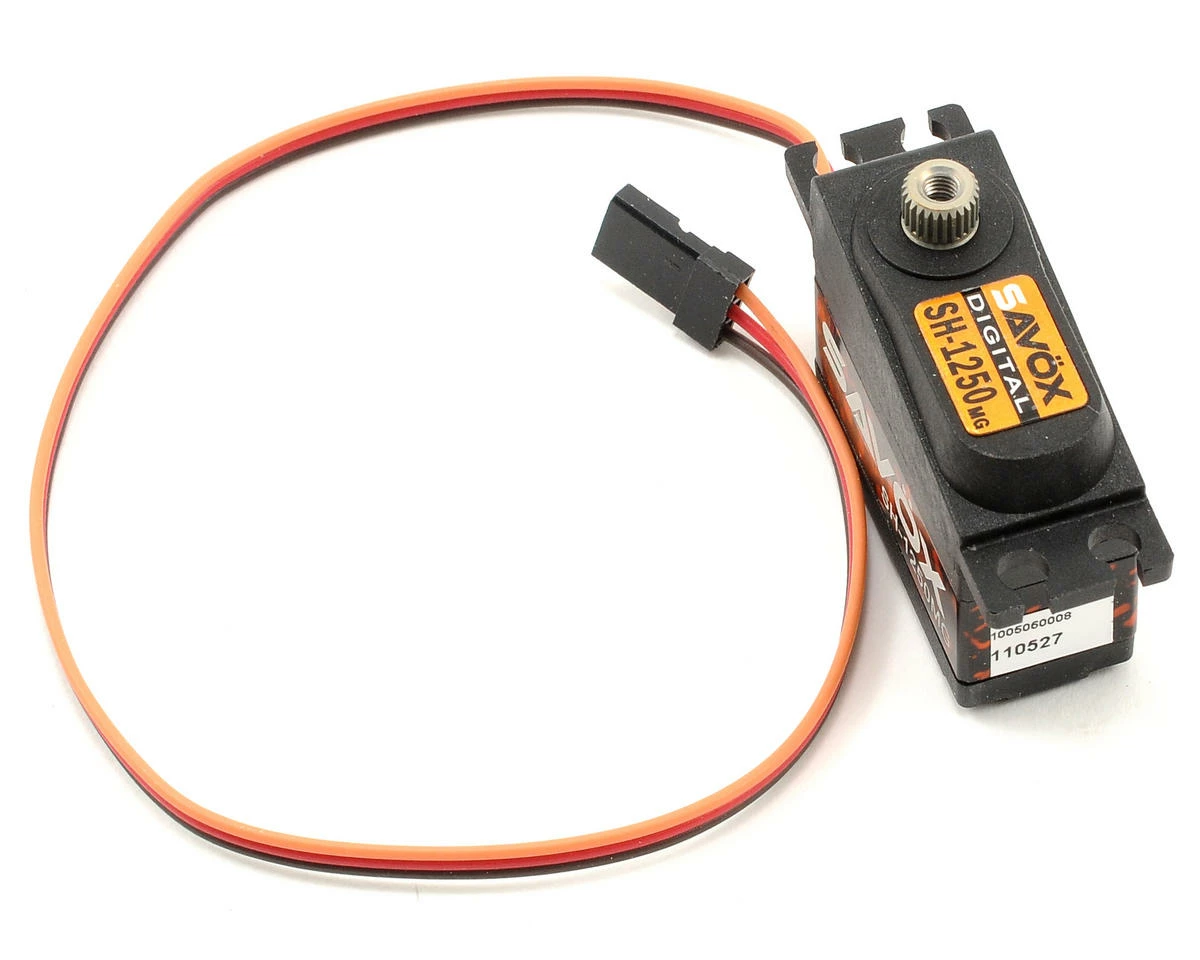

Savox SH-1250MG Digital Metal Gear “High Torque” Mini Servo

The Savox SH-1250MG is a mini sized, metal-gear, digital servo that is extremely strong for its size which makes it great for a number of applications.

Features:

• Metal gear train ensures durability and longevity.
• Aluminum middle case allows for cooler operating temperatures.
• Ideal for 1/12 on road, small planes, and some heli applications.
• Dual ball bearing support.

Specifications:
Torque @ 4.8V: – 3.7kg/51.4oz-in
Torque @ 6V: 4.6kg/63.9oz-in
Speed @ 4.8V: 0.13 sec/60 deg
Speed @ 6V: 0.11 sec/60 deg
Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
Weight: 29.6g

*NOTE: Certain combinations of receiver and ESC have been found to cause “Brown Out” issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.
