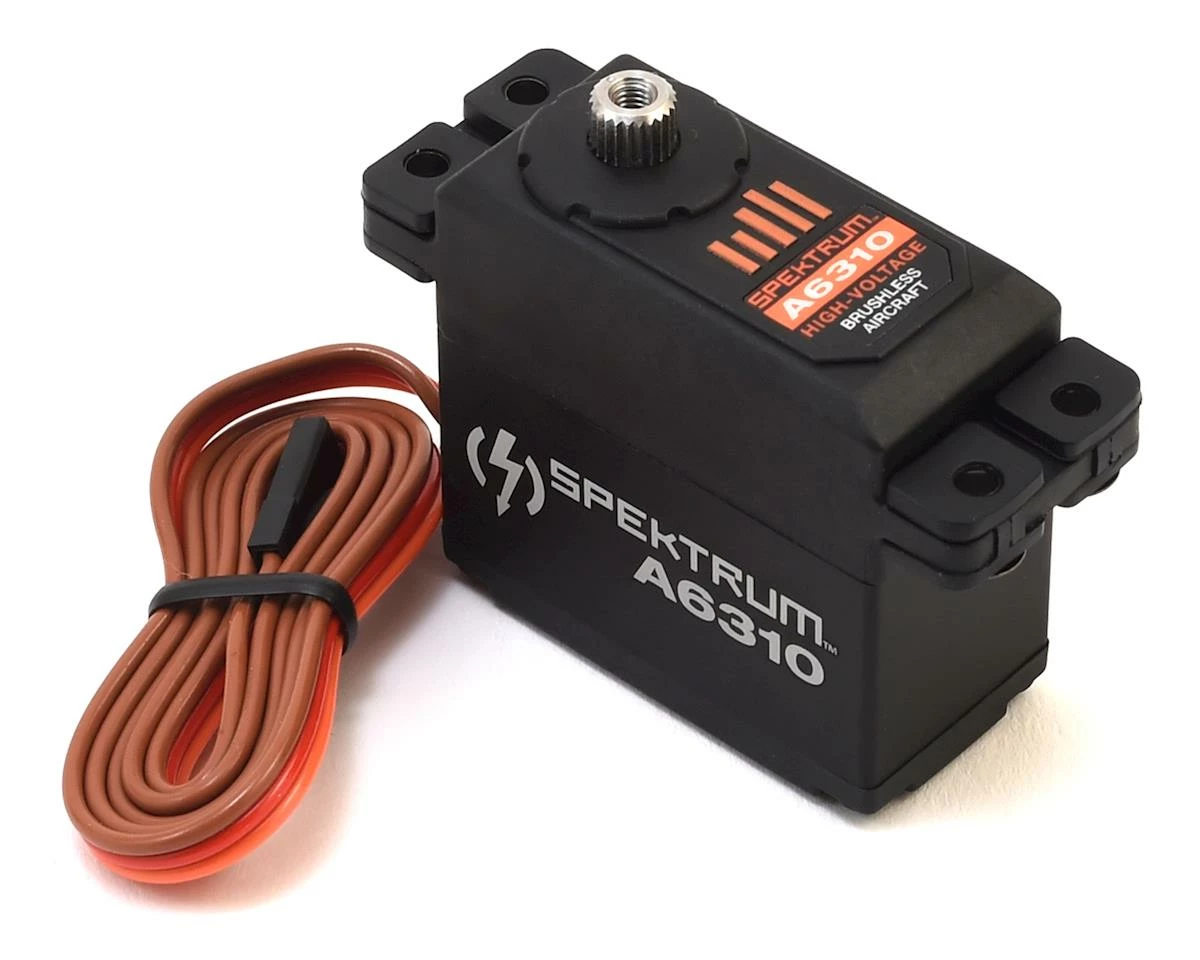

Spektrum RC A6310 Ultra Torque Metal Gear Brushless Airplane Servo (High Voltage)

Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.

The Spektrum A6310 uses this solid foundation, plus additional inner support, to achieve an outstanding balance of power, durability and value, in addition to the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for 60-120cc Aerobatic models and most sport flying Giant Scale models.

Features:

• High Voltage (HV) capable (6.0-8.4v input range)
• Outstanding torque and speed in a standard servo size (350 oz-in and .10 sec/60° @8.4v)
• Durable and long lasting brushless motor
• Low wear and tightly meshed all metal gear train
• Dual bearing supported drive train helps maximize smooth operation
• Aluminum center servo case helps keep operating temperatures low
• Soft start helps prevent component and airframe damage during un-intentional initializations
• Over Current and Temperature protection
• Helpful initialization start tone lets pilot know when the servo is ready
• Integrated servo failsafe holds last known position if signal is lost and power is maintained
• Frequency : 50-400hz

Specifications:
Type: Digital
Torque: 192.4 oz-in (13.8 kg-cm) @ 6.0V; 324.3 oz-in (23.3 kg-cm) @ 7.4V; 350.0 oz-in (25.2 kg-cm) @ 8.4V
Speed: 0.12 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
Length: 37.8mm (1.49in)
Width: 20.0mm (0.79in)
Height: 40.0mm (1.57in)
Weight: 2.5 oz (71 g)
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Voltage: 6.0-8.4V

This product is expected to become available for purchase on Wednesday, March 23, 2022
