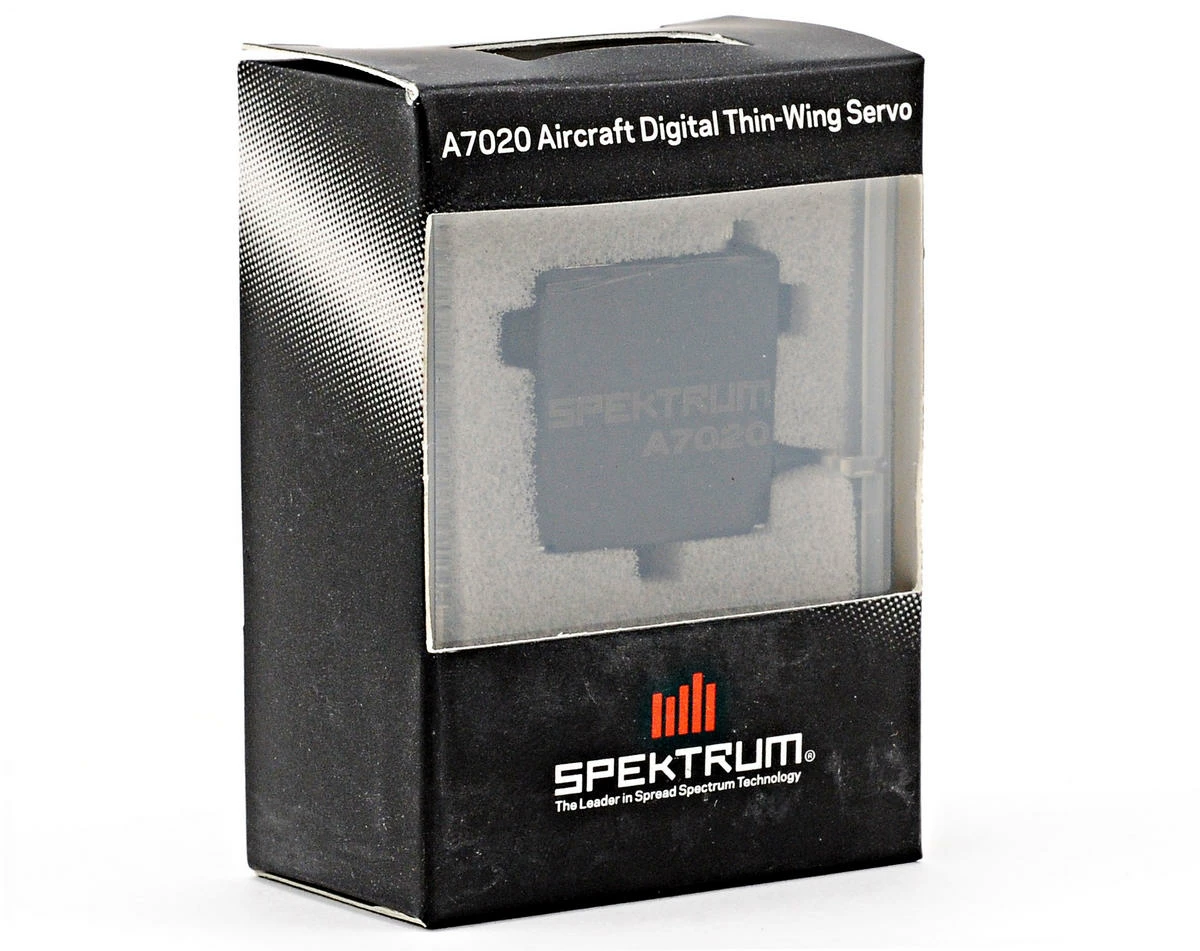

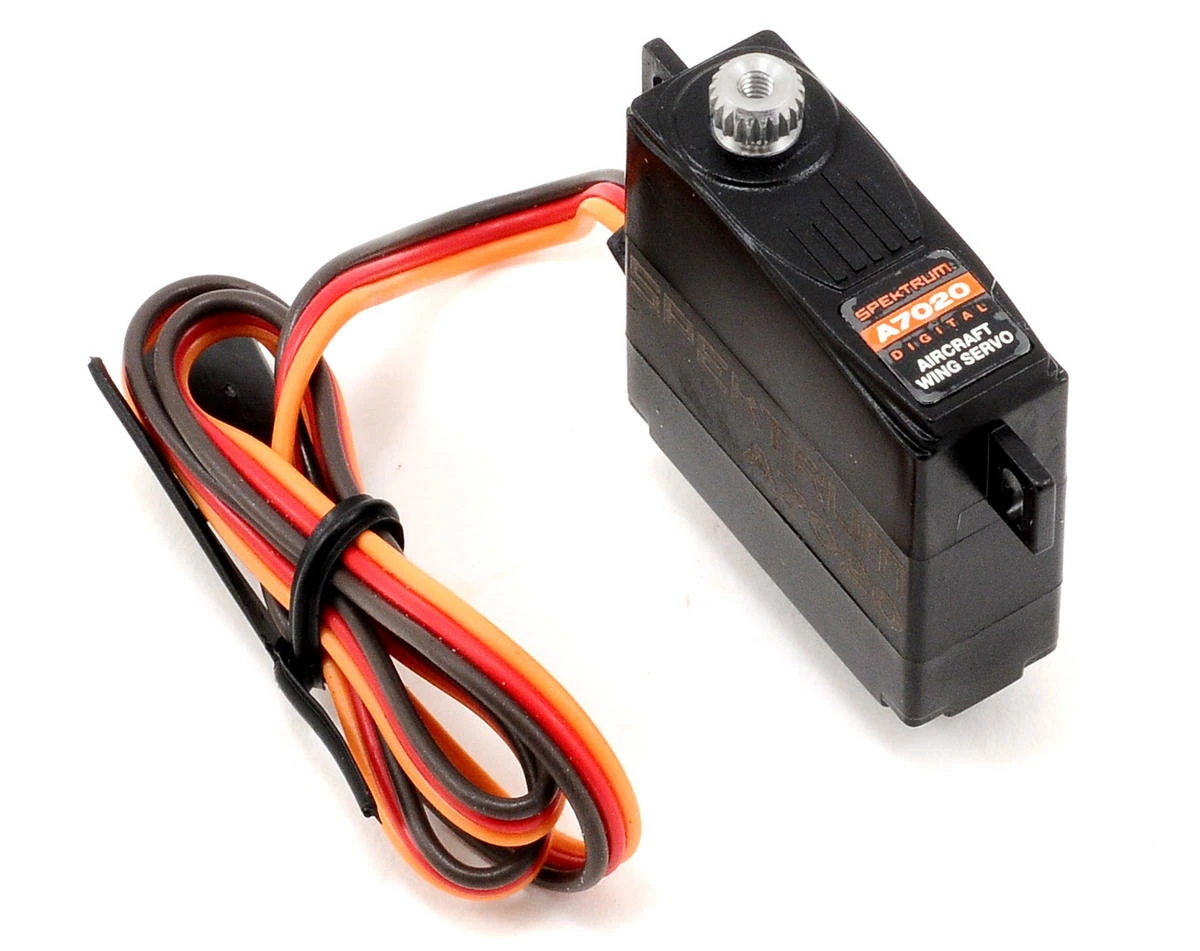

Spektrum RC A7020 Digital Metal Gear Thin-Wing Servo

This is the Spektrum A7020 Digital Metal Gear Thin-Wing Servo. The A7020 digital thin-wing servo offers a metal gear train, great speed and incredible 50 oz-in of torque. Perfect for any aircraft requiring a thin-wing servo, the A7020 is a class-leading sailplane servo with digital precision at a thickness of only 10mm.

Features:

• Digital performance and excellent torque in a very small size
• Designed to fit in very thin wings.

Specifications:

• Size Category: Specialty
• Type: Digital
• Application: Thin wing servo (10mm thick) for sailplanes and small electric aircraft
• Torque:
• @ 4.8V: 47 oz-in (3.4kg-cm)
• @6.0V: 50 oz-in (3.6 kg-cm)
• Speed:
• @ 4.8V: 0.11 sec/60°
• @ 6.0V: 0.09 sec/60°
• Length: 1.08 in (27.4mm)
• Width: 0.39 in (10mm)
• Height: 1.07 in (27.2mm)
• Weight: 0.5 oz (14.5g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: Coreless
• Connector Type: Z connector
• Gear Type: Metal

This product was added to our catalog on August 3, 2011
